Front glove-box - Knee-guard panel for GILERA PIAGGIO VESPA Beverly Sport E3 from 2007

Windshield - Glass

Central cover - Footrests

Front glove-box - Knee-guard panel

1

GLOVEBOX COMPARTMENT (RAW)

65293900NG

Not Available

1

Complete front top box

652939

Not Available

2

Glove compartment door

621672

Not Available

3

CONTROPORTELLO

576794

$23,06 Unit Price incl. VAT

4

VITE AUTOFILETTANTE

296141

$0,08 Unit Price incl. VAT

5

Flap packing

CM006303

Not Available

6

SQUADRETTA FISSAGGIO PORTELLO

257614

$1,09 Unit Price incl. VAT

7

VITE AUTOF.CON TAGLIO A CROCE 3,5x13

297498

$0,08 Unit Price incl. VAT

8

SQUADRETTA

252420

$0,59 Unit Price incl. VAT

9

GANCIO PORTABORSA COMPLETO

575819

$12,88 Unit Price incl. VAT

10

VITE AUTOF. TCCIC D4,2x13 UNI 947

259349

$0,17 Unit Price incl. VAT

11

Spring

577005

Not Available

12

MOLLETTA DI AGGANCIO

299693

$0,42 Unit Price incl. VAT

13

CAGNOLETTO

575607

$1,35 Unit Price incl. VAT

14

Pin

270147

Not Available

15

PERNO

575062

$5,38 Unit Price incl. VAT

16

Spring

575610

$5,38 Unit Price incl. VAT

17

LEVETTA

577861

$1,35 Unit Price incl. VAT

18

TAPPO CHIUSURA

190567

$2,64 Unit Price incl. VAT

19

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

23

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

24

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

25

VITE

258249

$0,09 Unit Price incl. VAT

26

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

27

FLAP

62166900NG

Not Available

27

PORTELLO ISPEZIONE LIQUIDO RAFFR.

621669

$49,79 Unit Price incl. VAT

28

VITE AUTOF.CON TAGLIO A CROCE 3,5x13

297498

$0,08 Unit Price incl. VAT

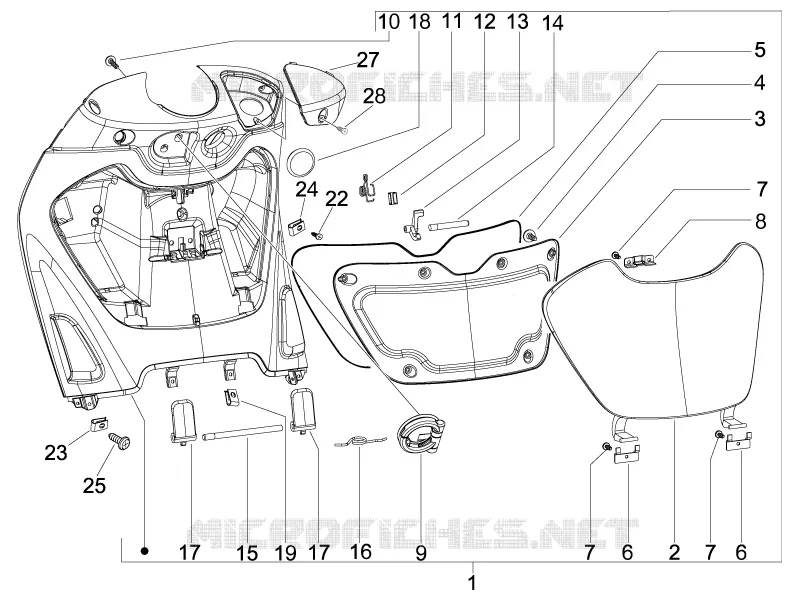

Find the detailed Front glove-box - Knee-guard panel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
