by

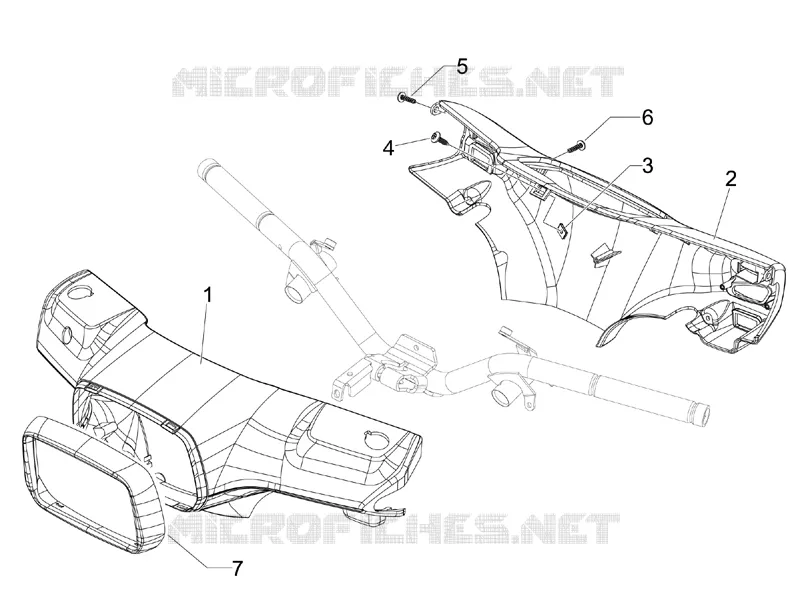

Handlebars coverages
1
2
3
4
5
6
7
1
Front handlebars cover
65426300R7
Not Available
1
Front handlebar cover
65426300NL
Not Available
1
Front handlebars cover
654263
Not Available
1
Front handlebar cover
6542630090
Not Available
1
Front handlebars cover
65426300AI
Not Available
1
Front handlebar cover
65426300DI
Not Available
1
Front handlebars cover
65426300BR
Not Available
2
Handlebar rear cover
654264
Not Available
2
Handlebar rear cover
65426400AI
Not Available
2
Handlebar rear cover
65426400NL
Not Available
2
Handlebar rear cover
65426400BR
Not Available
2
Handlebar rear cover
65426400DI
$257,45 Unit Price incl. VAT
2
Handlebar rear cover
65426400AH
$257,45 Unit Price incl. VAT
2
Handlebar rear cover
65426400R7
Not Available
2
Handlebar rear cover
6542640090
Not Available
3
Spring plate
CM017409
$0,08 Unit Price incl. VAT
4
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
5
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
6
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
7
Headlight frame
654265
$59,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
