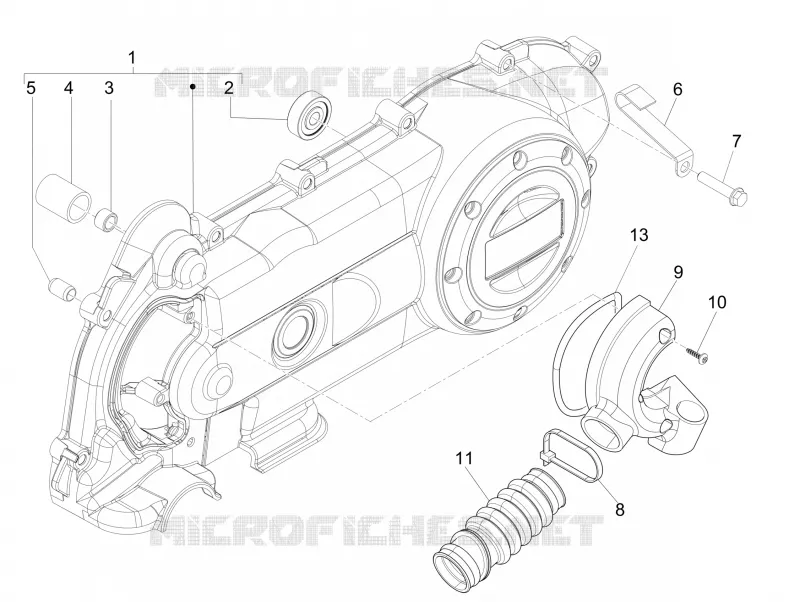

Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
9
10
11
13
1
Transmission cover with U.P.
8733655
$98,55 Unit Price incl. VAT
2
Bearing
82521R
$9,32 Unit Price incl. VAT
3
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
4
Bush
286209
$3,70 Unit Price incl. VAT
5
Pin 6,5x9,5x15
239388
Not Available
6
Hose clamp
482291
$0,44 Unit Price incl. VAT
7
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
8
Hose clamp
709519
$5,38 Unit Price incl. VAT
9
Cooling Cover
969804
Not Available
10
screw
435295
$2,99 Unit Price incl. VAT
11
Bellows
298548
$10,76 Unit Price incl. VAT
13
Gasket
435251
$5,45 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
