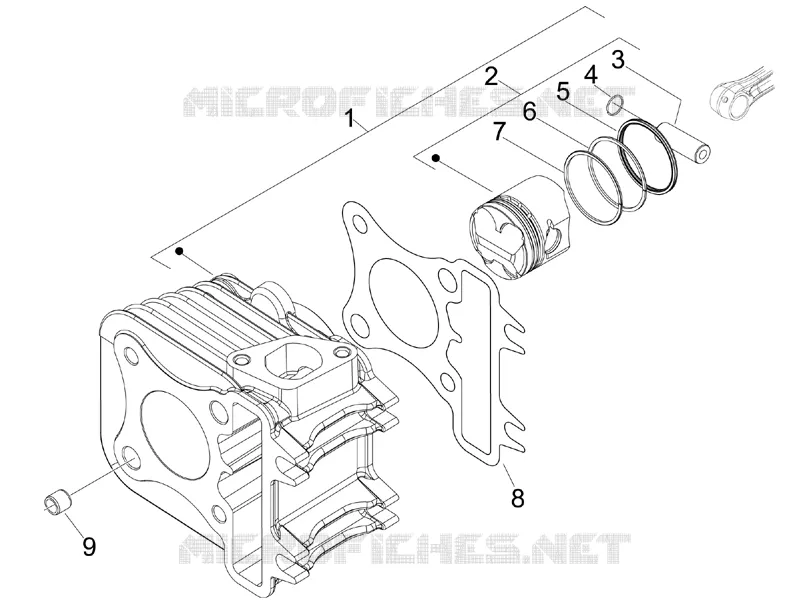

Cylinder-piston-wrist pin unit
1
1
2
3
4
5
6
7
7
8
9
9
1
Cylinder with piston
873467
$127,89 Unit Price incl. VAT
2
Piston assy Cat.3
8734660003
$39,73 Unit Price incl. VAT
2
Piston assy Cat.2
8734660002
$39,73 Unit Price incl. VAT
2
Piston assy Cat.4
8734660004
$39,73 Unit Price incl. VAT
2
Piston assy Cat.1
8734660001
$39,73 Unit Price incl. VAT
3
Piston pin
969214
$4,38 Unit Price incl. VAT
4
Pin retainer circlip
969213
$2,99 Unit Price incl. VAT
5
Oil scraper ring
969217
$9,32 Unit Price incl. VAT
6
Ring
969216
$6,44 Unit Price incl. VAT
7
Ring
969215
$6,44 Unit Price incl. VAT
8
Cylinder base gasket 0,5
969230
$1,26 Unit Price incl. VAT
9
Pin 6,5x9,5x15
239388
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
