by

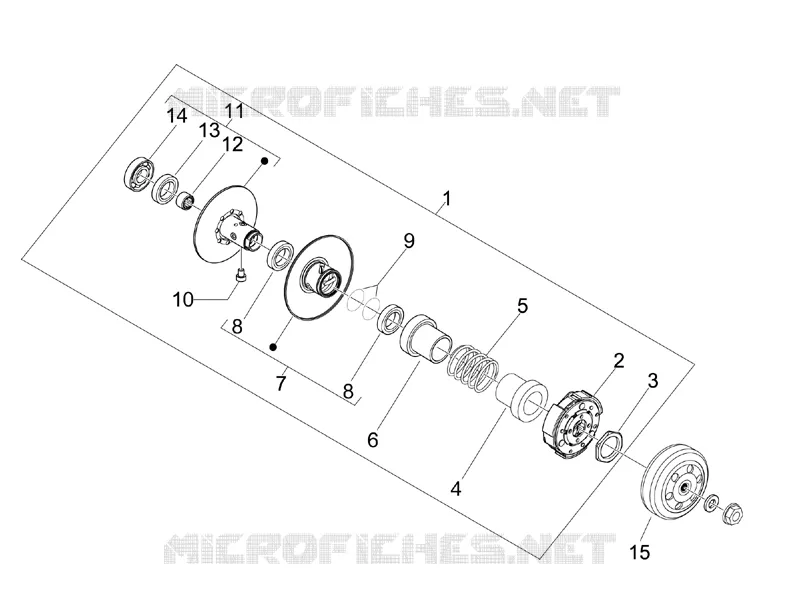

Driven pulley
1
1
2
2
3
4
5
5
6
7
8
8
8
9
10
10
11
11
12
12
13
13
14
15
1
Complete secondary pulley
CM100107
Not Available
2
Clutch, assy.
CM100202
Not Available
3
Ring nut
289955
$8,58 Unit Price incl. VAT
4
Clutch side cap
487935
$20,91 Unit Price incl. VAT
5
Variator spring
478028
$17,60 Unit Price incl. VAT
6
Pulley side cap
483443
$3,70 Unit Price incl. VAT
7
Complete movable secondary pulley
827893
$94,53 Unit Price incl. VAT
8
Gasket ring
289950
$9,17 Unit Price incl. VAT
9
Gasket
289840
$1,26 Unit Price incl. VAT
10
Pin
482766
$3,70 Unit Price incl. VAT
11
Pulley, half
479552
Not Available
12
Roller cage
289952
$5,97 Unit Price incl. VAT
13
Ring
006624
$2,99 Unit Price incl. VAT
14
Ball bearing
82655R
$27,40 Unit Price incl. VAT
15
Clutch drum
289933
$43,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
