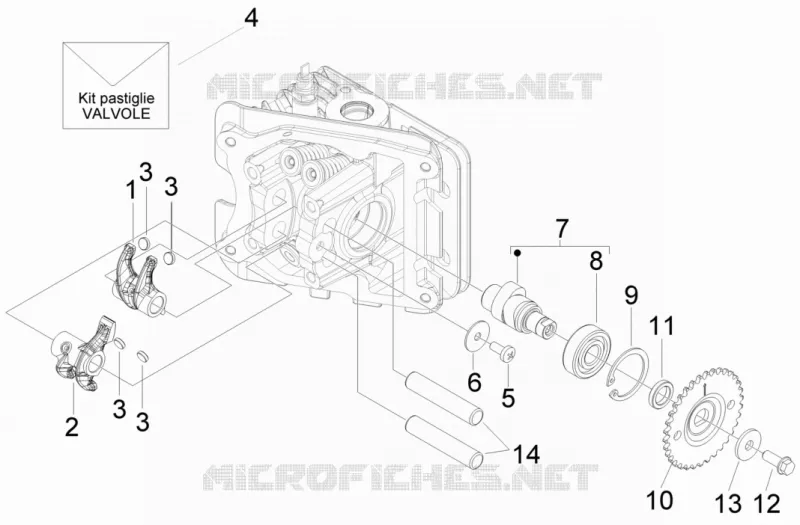

Rocking levers support unit
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
1
Intake side rocker
842200
$37,00 Unit Price incl. VAT
2
Exhaust side rocker
842201
$37,00 Unit Price incl. VAT
3
Calibrated tablet 2,75
CM144324
$10,92 Unit Price incl. VAT
3
Calibrated tablet 3,2
CM144333
$19,03 Unit Price incl. VAT
3
Calibrated tablet 2,90
CM144327
$20,91 Unit Price incl. VAT
3
Calibrated tablet 3,10
CM144331
$17,32 Unit Price incl. VAT
3
Calibrated tablet 3,05
CM144330
$20,91 Unit Price incl. VAT
3
Calibrated tablet 2,60
CM144321
$17,32 Unit Price incl. VAT
3
Calibrated tablet 3,15
CM144332
$20,91 Unit Price incl. VAT
3
Calibrated tablet 2,95
CM144328
$20,91 Unit Price incl. VAT
3
Calibrated tablet 2,65
CM144322
$20,91 Unit Price incl. VAT
3
Calibrated tablet 2,85
CM144326
$20,91 Unit Price incl. VAT
3
Calibrated tablet 2,50
CM144319
$19,03 Unit Price incl. VAT
3
Calibrated tablet 2,55
CM144320
$20,91 Unit Price incl. VAT
3
Calibrated tablet 2,80
CM144325
$20,91 Unit Price incl. VAT
3
Calibrated tablet 2,70
CM144323
$17,32 Unit Price incl. VAT
3
Calibrated tablet 3,00
CM144329
$17,32 Unit Price incl. VAT
4
Valve calibrated brake pads kit
497616
$916,28 Unit Price incl. VAT
5
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
6
Washer
004021
$2,27 Unit Price incl. VAT
7
Camshaft
845426
$72,06 Unit Price incl. VAT
8
Bearing 12x32x10
96926R
$6,44 Unit Price incl. VAT
9
Snap ring
006632
$0,28 Unit Price incl. VAT
10
Timing system gear
434943
$9,32 Unit Price incl. VAT
11
Spacer
842166
$0,76 Unit Price incl. VAT
12
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
13
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
14
Rocker arms axis
842174
$5,73 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
