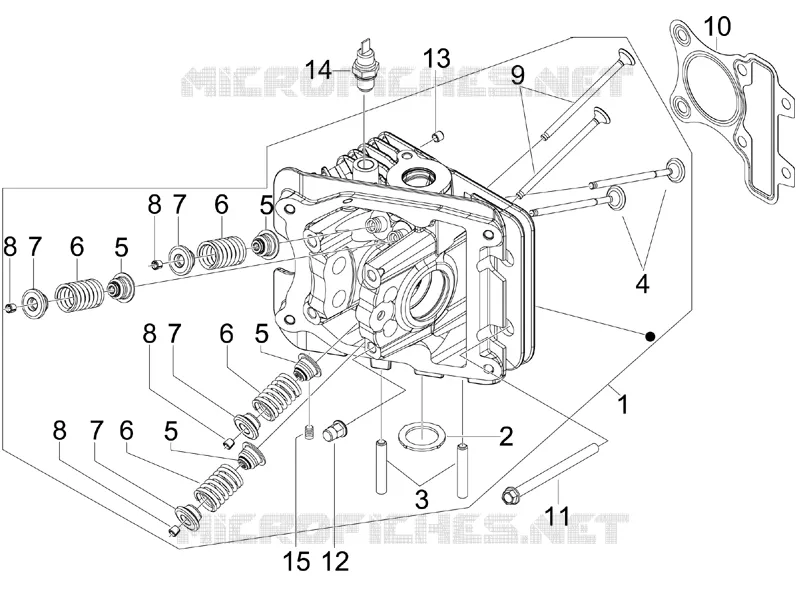

Head unit - Valve
1
2
3
4
5
5
5
5
6
6
6
6
7
7
7
7
8
8
8
8
9
10
11
12
13
14
15
1
Cylinder head assy.
845423
$473,97 Unit Price incl. VAT
2
Gasket
845776
$4,89 Unit Price incl. VAT
3
Stud bolt
016060
$2,99 Unit Price incl. VAT
4
Intake valve
872305
$11,95 Unit Price incl. VAT
5
Cup
843307
$2,77 Unit Price incl. VAT
6
Spring
845951
$6,48 Unit Price incl. VAT
7
Upper cap
871889
$3,70 Unit Price incl. VAT
8
Valve half-cone
843338
$5,73 Unit Price incl. VAT
9
Exhaust valve
872272
$25,47 Unit Price incl. VAT
10
Cylinder head gasket 0,35 mm
846014
$4,82 Unit Price incl. VAT
10
Cylinder head gasket 0,25 mm
845663
$4,82 Unit Price incl. VAT
11
Hex socket screw
319242
$3,70 Unit Price incl. VAT
12
Nut
969224
$0,42 Unit Price incl. VAT
13
Pin 6,5x9,5x15
239388
Not Available
13
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
14
Thermistor
82622R
$10,82 Unit Price incl. VAT
15
Plug M6x10
842360
$0,75 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
