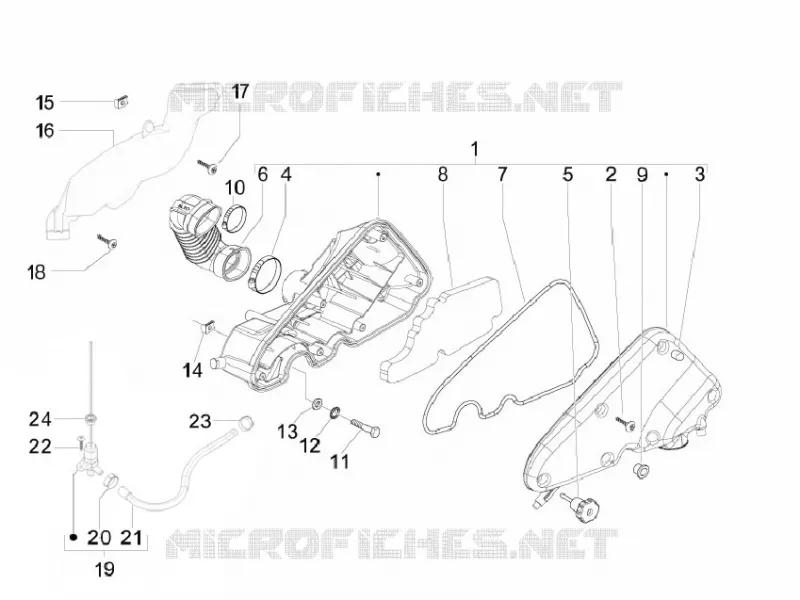

Air filter
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
20
21
22
23
24
1
Complete air cleaner box
878184
$179,83 Unit Price incl. VAT
1
Complete air cleaner box
849255
Not Available
2
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
3
Cap
827831
$2,60 Unit Price incl. VAT
4
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
5
Air filter closing knob
479132
$10,92 Unit Price incl. VAT
6
Bellows
829120
$12,45 Unit Price incl. VAT
6
Air calibration tube
843849
$85,43 Unit Price incl. VAT
7
Gasket
843195
$14,41 Unit Price incl. VAT
7
Gasket
487402
Not Available
8
Air filter
843194
Not Available
8
Air filter
487401
Not Available
9
Knurled bushing
830056
$0,34 Unit Price incl. VAT
10
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
11
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
12
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
13
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
14
Spring plate M6
254485
$0,34 Unit Price incl. VAT
15
Intake pipe
298620
Not Available
16
Spring plate M6
254485
$0,34 Unit Price incl. VAT
17
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
18
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
19
Solenoid valve
848962
$51,32 Unit Price incl. VAT
19
Solenoid valve
849281
Not Available
20
Hose clamp
CM001913
$0,75 Unit Price incl. VAT
21
Air hose
849257
Not Available
22
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
23
Hose clamp
CM001912
$3,65 Unit Price incl. VAT
24
Fairlead
849271
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
