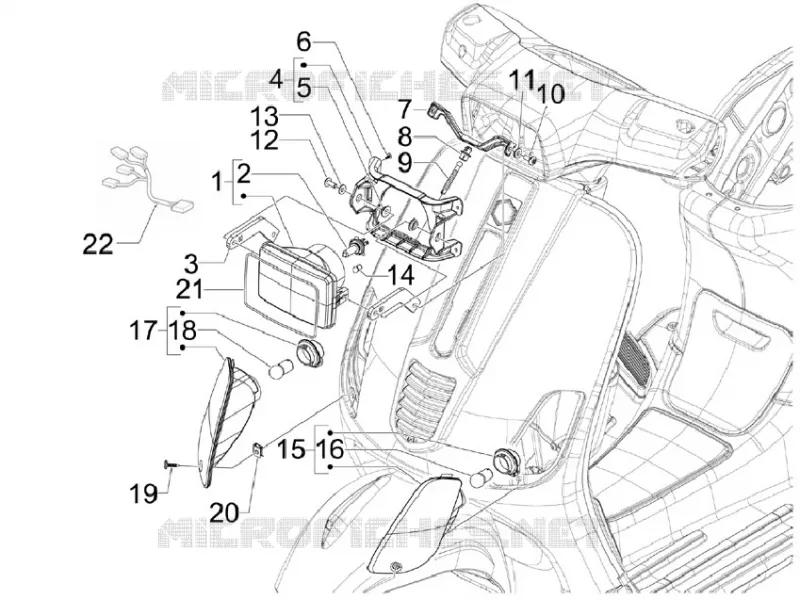

Front headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Headlamp, assy
640719
$113,40 Unit Price incl. VAT
2
Lamp H4 12V-60/55W
292723
$10,39 Unit Price incl. VAT
3
Headlight support clamp
654271
$7,23 Unit Price incl. VAT
4
Complete headlight support
654890
$19,68 Unit Price incl. VAT
5
Headlight spacer
654301
$3,65 Unit Price incl. VAT
6
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
7
Junction component
654276
$13,53 Unit Price incl. VAT
8
Adjuster block
640800
$4,82 Unit Price incl. VAT
9
Adjusting pin
640801
$5,38 Unit Price incl. VAT
10
Screw m16x16
015558
$3,65 Unit Price incl. VAT
11
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
12
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
12
Screw M5x16
015715
$2,25 Unit Price incl. VAT
13
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
14
Lamp 12V-5W
292022
Not Available
15
Front left turn indicator
641912
$20,34 Unit Price incl. VAT
16
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
17
Front right turn indicator
641911
$20,34 Unit Price incl. VAT
18
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
19
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
20
Plate
CM017406
$3,65 Unit Price incl. VAT
21
Gasket
654876
$34,73 Unit Price incl. VAT
22
Headlight cable assembly
642002
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
