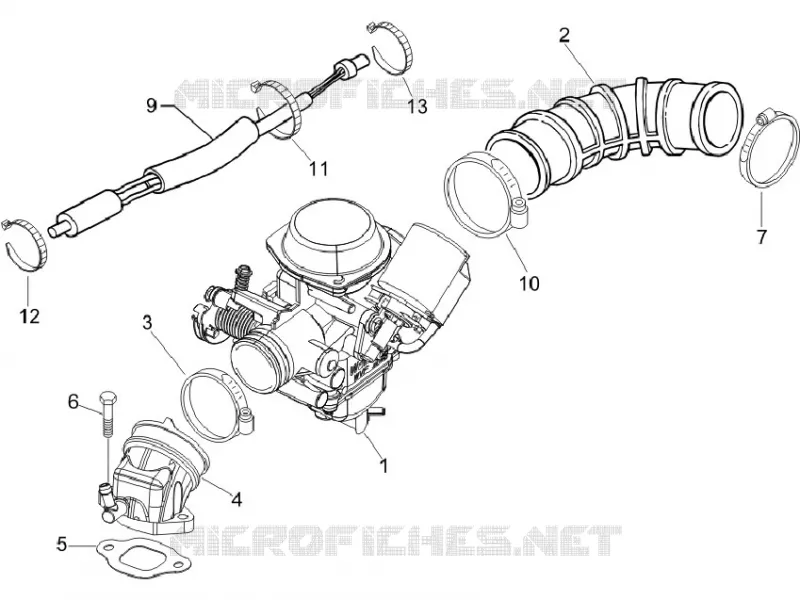

Carburettor, assembly - Union pipe
1
2
3
4
5
6
7
9
10
11
12
13
1
Carburettor Keihin CVEK-2704A (P.P)
CM156007
Not Available
2
Filter box carburettor sleeve
829001
$8,75 Unit Price incl. VAT
3
Hose clamp
709532
Not Available
4
Induction joint with U.P.
849465
$13,39 Unit Price incl. VAT
4
Induction joint with U.P.
871973
$25,50 Unit Price incl. VAT
5
Induction joint gasket
871167
$0,63 Unit Price incl. VAT
6
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
7
Hose clamp
709532
Not Available
9
Resistor Module
82961R
Not Available
10
Hose clamp
709532
Not Available
11
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
12
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
13
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
