Parts Catalog
Cylinder head cover
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Crankshaft

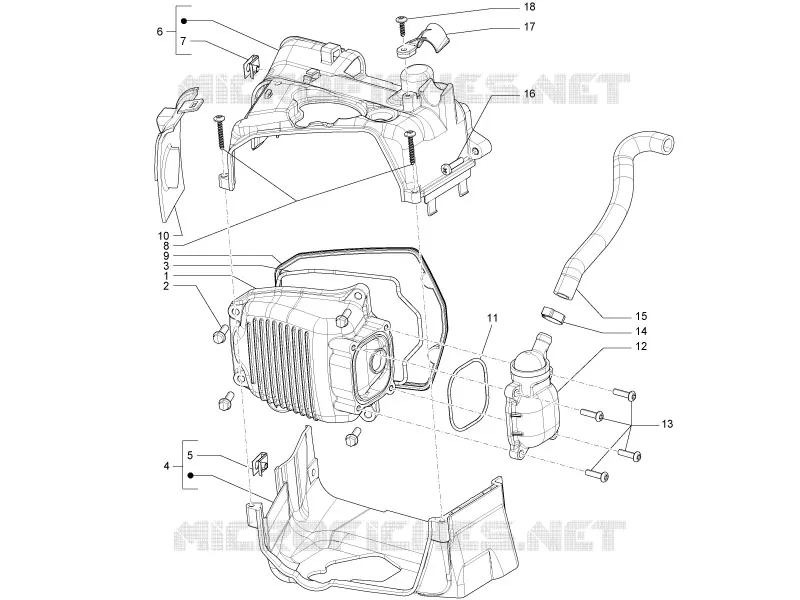

Cylinder head cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Head cover
877140
$24,03 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Packing
829817
$2,43 Unit Price incl. VAT
4
Exhaust side hood
871760
$5,54 Unit Price incl. VAT
5
Spring plate M5
248419
$0,67 Unit Price incl. VAT
6
Intake side hood
B013100
$24,59 Unit Price incl. VAT
7
Spring plate M5
248419
$0,67 Unit Price incl. VAT
8
Self-tapping screw
B015983
Not Available
9
Cylinder head gasket
825364
$1,98 Unit Price incl. VAT
10
Spark plug cover
825368
$8,27 Unit Price incl. VAT
11
Gasket
B015452
$2,28 Unit Price incl. VAT
12
Oil bleed cover
829008
$5,54 Unit Price incl. VAT
13
Hex socket screw M5x20
845753
Not Available
14
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
15
Oil breather pipe
876885
$12,45 Unit Price incl. VAT
16
Screw M5x22
828662
$0,25 Unit Price incl. VAT
17
Plug
880685
$6,15 Unit Price incl. VAT
18
TBCIC Screw
270793
$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
