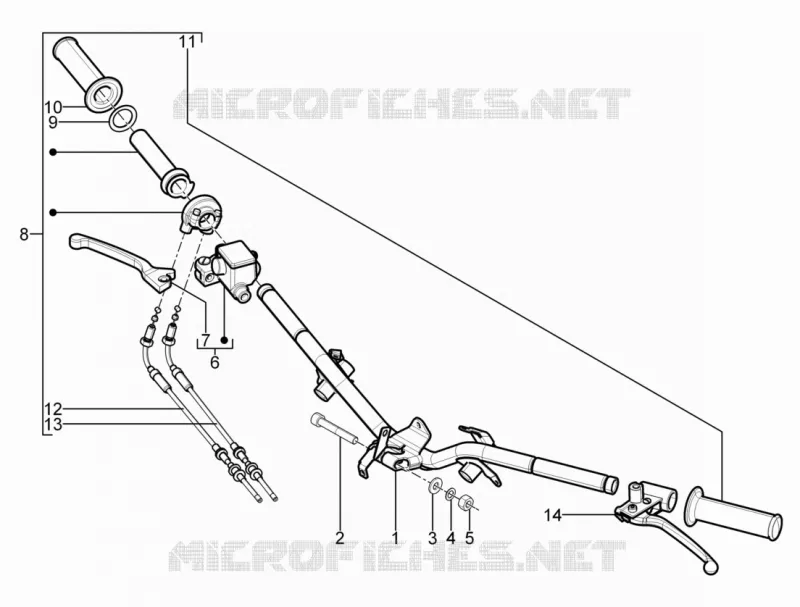

Handlebars - Master cil. for S 4T ie E3 from 2011

Handlebars - Master cil.

1

Handlebar with U.P.

657116

Not Available

2

Hex socket screw

655554

$3,70 Unit Price incl. VAT

3

Flat washer 18x10,2x2,5

267917

$0,50 Unit Price incl. VAT

4

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

5

Nut M10

015330

$0,25 Unit Price incl. VAT

6

(Heng Tong) Brake pump

CM085401

$55,73 Unit Price incl. VAT

7

Brake lever (Heng Tong)

666558

$12,69 Unit Price incl. VAT

8

Throttle control sleeve assembly

668086

$35,59 Unit Price incl. VAT

8

Throttle control sleeve assembly

666613

Not Available

9

Ring

666129

$5,53 Unit Price incl. VAT

10

Grip, r.h.

666132

$4,95 Unit Price incl. VAT

11

Complete left hand grip

666130

Not Available

12

Throttle opening transmission

666614

Not Available

13

Throttle closing transmission

666615

$23,17 Unit Price incl. VAT

14

Left hand grip with rear brake lever

651034

$23,36 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
