Remote control switches - Battery - Horn for S 4T ie E3 from 2011

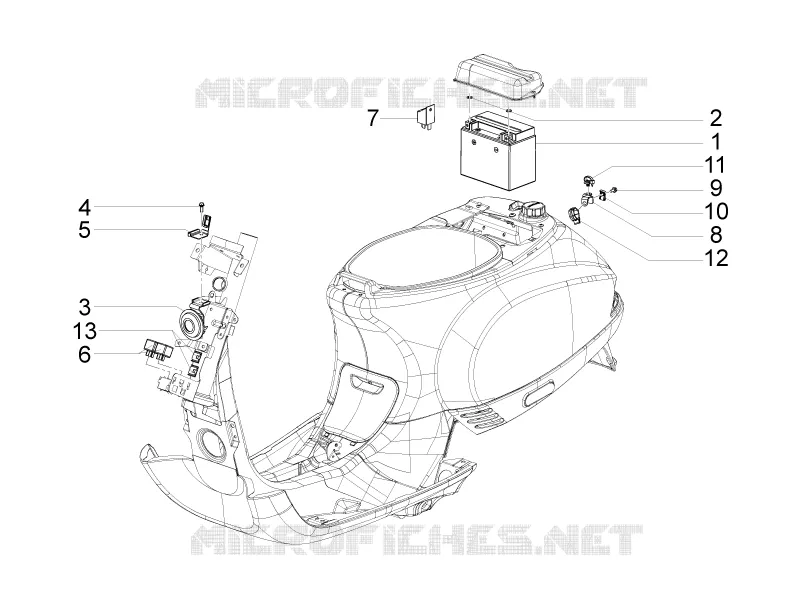

Remote control switches - Battery - Horn

1

Battery (Yuasa) 12V-10Ah

583158

$278,17 Unit Price incl. VAT

1

Battery 12V-6Ah

1D001965

Not Available

2

Spring washer 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

3

Horn

58230R

$7,41 Unit Price incl. VAT

4

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

5

Fuse support bracket

642076

$6,30 Unit Price incl. VAT

6

Rem. control switch 12V-30A

642065

$10,76 Unit Price incl. VAT

7

Starter relay 12V-80A

58115R

$9,18 Unit Price incl. VAT

8

Plate

641955

$3,65 Unit Price incl. VAT

9

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

10

Spring plate M5

248419

$0,67 Unit Price incl. VAT

11

Hose clamp

641764

$0,25 Unit Price incl. VAT

12

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

13

Plugs spring

641599

$4,82 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
