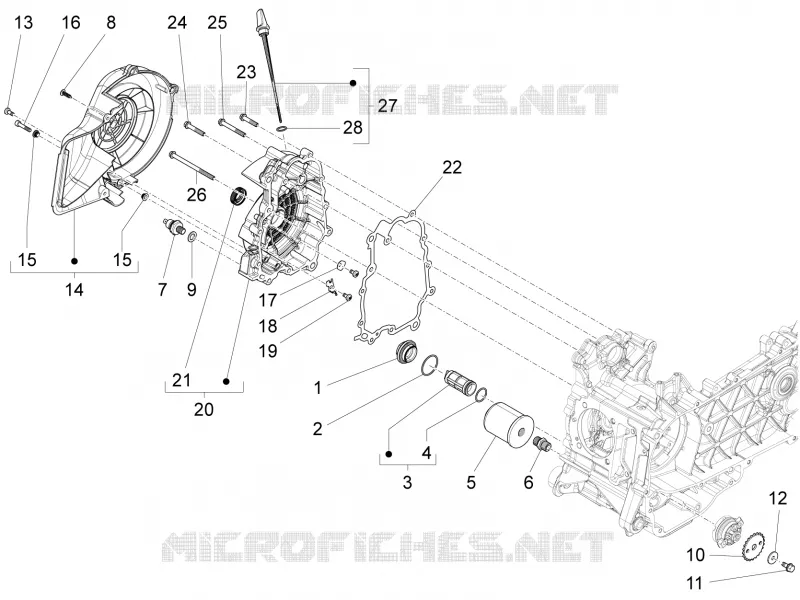

Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Oil filter plug
B015456
$14,30 Unit Price incl. VAT
1
Oil filter plug
826165
$5,88 Unit Price incl. VAT
2
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
3
Intake oil filter
B015454
$2,52 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
5
Oil filter
82635R
$12,36 Unit Price incl. VAT
6
Special screw
B015455
$3,87 Unit Price incl. VAT
7
Oil pressure sensor
641541
Not Available
8
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
9
Washer 10,5x17x1,5
AP9150472
$4,82 Unit Price incl. VAT
10
Oil pump gear
287913
$6,47 Unit Price incl. VAT
11
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
12
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
13
Self-tapping screw
018623
Not Available
14
Air deflector
880811
Not Available
15
Bushing
B015908
$1,18 Unit Price incl. VAT
16
Hex socket screw M5x25
486972
$0,09 Unit Price incl. VAT
17
Plate
880708
$0,17 Unit Price incl. VAT
18
Plate
B016988
$0,93 Unit Price incl. VAT
19
Screw M5x10
018575
$2,95 Unit Price incl. VAT
20
Flywheel cover
879854
Not Available
21
Gasket ring 14x28x7
1A003827
$5,20 Unit Price incl. VAT
22
Flywheel housing cover gasket
877671
$4,12 Unit Price incl. VAT
23
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
24
screw M6x35
414838
$0,67 Unit Price incl. VAT
25
Screw w/ flange M6x50
B016775
$0,42 Unit Price incl. VAT
26
Screw w/ flange M6x90
B016776
$0,67 Unit Price incl. VAT
27
Oil dipstick
B017891
$5,38 Unit Price incl. VAT
28
O-ring
479986
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
