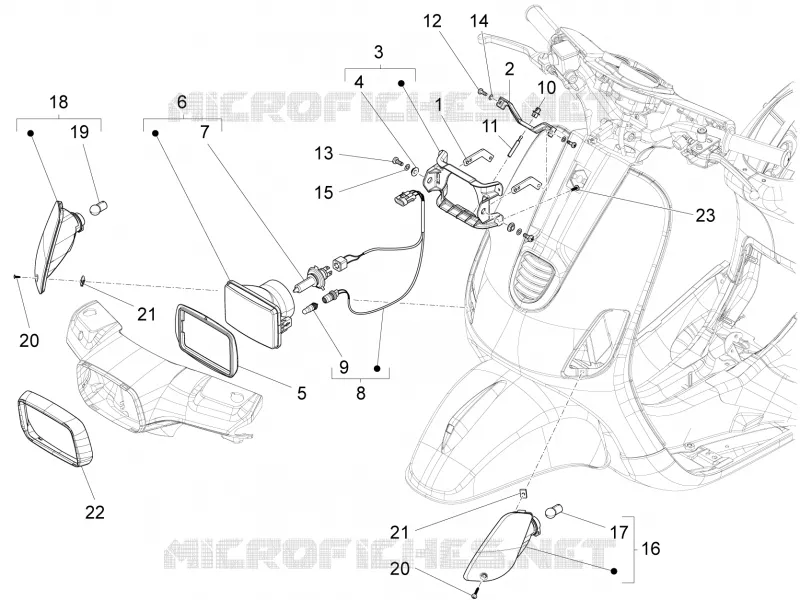

Front headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
23
1
Headlight support clamp
654271
$7,23 Unit Price incl. VAT
2
Junction component
654276
$13,53 Unit Price incl. VAT
3
Complete headlight support
654890
$19,68 Unit Price incl. VAT
4
Headlight spacer
654301
$3,65 Unit Price incl. VAT
5
Gasket
654876
$34,73 Unit Price incl. VAT
6
Headlamp, assy
640719
$113,40 Unit Price incl. VAT
7
Lamp H4 12V-60/55W
292723
$10,39 Unit Price incl. VAT
8
Headlight cable assembly
640967
$16,91 Unit Price incl. VAT
9
Lamp 12V-5W
292022
Not Available
10
Adjuster block
640800
$4,82 Unit Price incl. VAT
11
Adjusting pin
640801
$5,38 Unit Price incl. VAT
12
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
13
screw M6x16
018631
$3,65 Unit Price incl. VAT
14
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
15
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
16
Front left turn indicator
58174R
$16,34 Unit Price incl. VAT
17
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
18
Front right turn indicator
58175R
$14,50 Unit Price incl. VAT
19
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
20
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
21
Plate
CM017406
$3,65 Unit Price incl. VAT
22
Headlight frame
654265
$59,64 Unit Price incl. VAT
23
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
