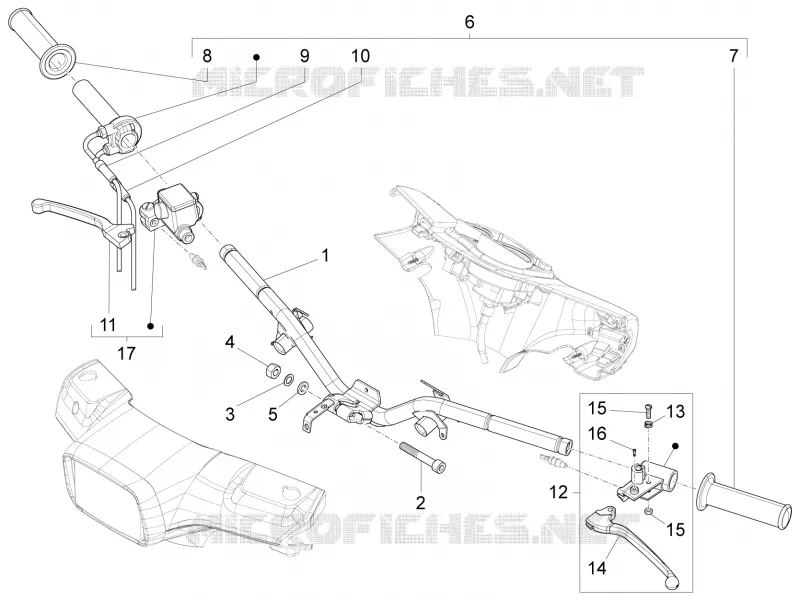

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
1
Handlebar with U.P.
654267
Not Available
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
4
Nut M10
015330
$0,25 Unit Price incl. VAT
5
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
6
Throttle control sleeve assembly
CM079739
Not Available
7
Grip, l.h.
CM083803
$18,36 Unit Price incl. VAT
8
Grip, r.h.
CM083804
$18,36 Unit Price incl. VAT
9
Throttle opening transmission
668482
$45,97 Unit Price incl. VAT
10
Throttle closing transmission
668483
$49,48 Unit Price incl. VAT
11
Brake lever
646833
Not Available
12
Left hand grip with rear brake lever
CM063804
$51,30 Unit Price incl. VAT
13
Spring
267948
$4,89 Unit Price incl. VAT
14
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
15
Screw with nut
265249
$3,70 Unit Price incl. VAT
16
Screw with bushing
123394
$3,70 Unit Price incl. VAT
17
Front master cilinder
CM074904
$125,55 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
