1
Engine displacement
150
2
Model
LXV
3
Year
2015
4
Trim
LXV 4T 3V E3
5
Parts Catalog

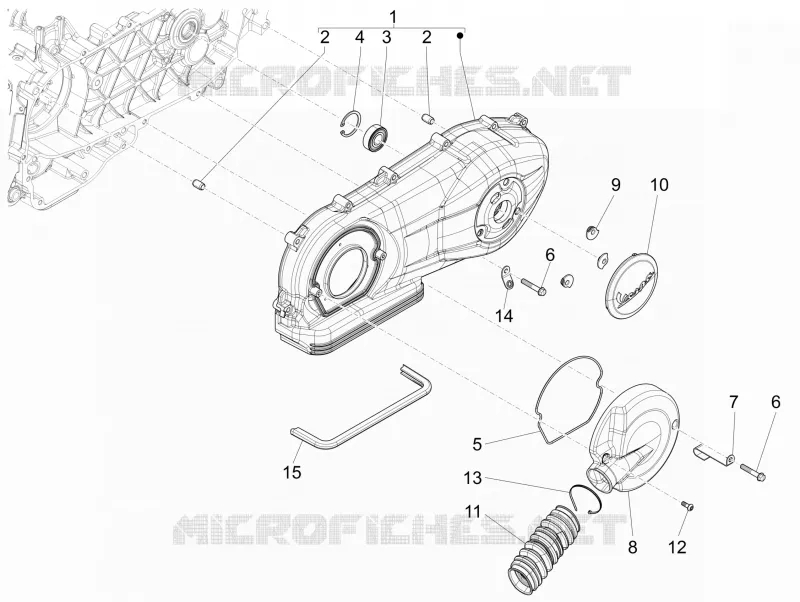

Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Handlebars coverages
Crankcase cover - Crankcase cooling
1
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
1
Transmission cover cpl.
B0176695
$89,10 Unit Price incl. VAT
2
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
3
Radial bearing 15x35x11
83057R
$7,02 Unit Price incl. VAT
4
Snap ring
006635
$0,25 Unit Price incl. VAT
5
Cover gasket
B016453
$7,23 Unit Price incl. VAT
6
Hex screw M6x35
B015965
Not Available
7
Hose clamp
668643
$4,36 Unit Price incl. VAT
8
Cooling Cover
B016454
Not Available
8
Cooling Cover
1A001147
$12,45 Unit Price incl. VAT
9
Retainer buffer
B016983
Not Available
10
"""Vespa"" transmission small cover"
CM166001
$11,34 Unit Price incl. VAT
11
Bellows
298548
$10,76 Unit Price incl. VAT
12
Hex socket screw M5x14
B016455
$0,34 Unit Price incl. VAT
13
Hose clamp
709519
$5,38 Unit Price incl. VAT
14
Hose clamp
844964
$0,25 Unit Price incl. VAT
15
Cover gasket
B015067
$5,21 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
