Front headlamps - Turn signal lamps for LXV 4T 3V E3 from 2015

Front headlamps - Turn signal lamps

1

Headlamp, assy

1D000175500HM

Not Available

1

Headlamp, assy

1D000175000NS

Not Available

1

Headlamp, assy

1D000175500VP

Not Available

1

Headlamp, assy

1D000175000VT

Not Available

1

Headlamp, assy

1D000175000DE5

Not Available

1

Headlamp, assy

1D000175500BR

Not Available

1

Headlamp, assy

1D000175500Q3

Not Available

1

Headlamp, assy

1D000175500MB

Not Available

1

Headlamp, assy

1D000175000S15

Not Available

1

Headlamp, assy

1D000175500DR

Not Available

2

12V-5W bulb

2920225

$1,10 Unit Price incl. VAT

3

Lamp H4 12V-60/55W

292723

$10,39 Unit Price incl. VAT

4

Frame

1D000200

Not Available

5

Headlight cable assembly

1D000247

Not Available

6

Light bracket with i.p.

653051

$40,12 Unit Price incl. VAT

7

Spacer

653054

$5,20 Unit Price incl. VAT

8

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

9

screw M6x16

624995

$3,70 Unit Price incl. VAT

10

Washer

624985

$5,20 Unit Price incl. VAT

11

Front left turn indicator

641912

$20,34 Unit Price incl. VAT

11

Front left turn indicator

58174R

$16,34 Unit Price incl. VAT

12

Bulb 12v 10w

680234

Not Available

12

Lamp 12V-10W

584332

$11,15 Unit Price incl. VAT

13

Front right turn indicator

58175R

$14,50 Unit Price incl. VAT

13

Front right turn indicator

641911

$20,34 Unit Price incl. VAT

14

Bulb 12v 10w

680234

Not Available

14

Lamp 12V-10W

584332

$11,15 Unit Price incl. VAT

15

Self-tap screw M4,2x19

008457

$2,99 Unit Price incl. VAT

16

Plate

CM017406

$3,65 Unit Price incl. VAT

17

Oring

5A000146

Not Available

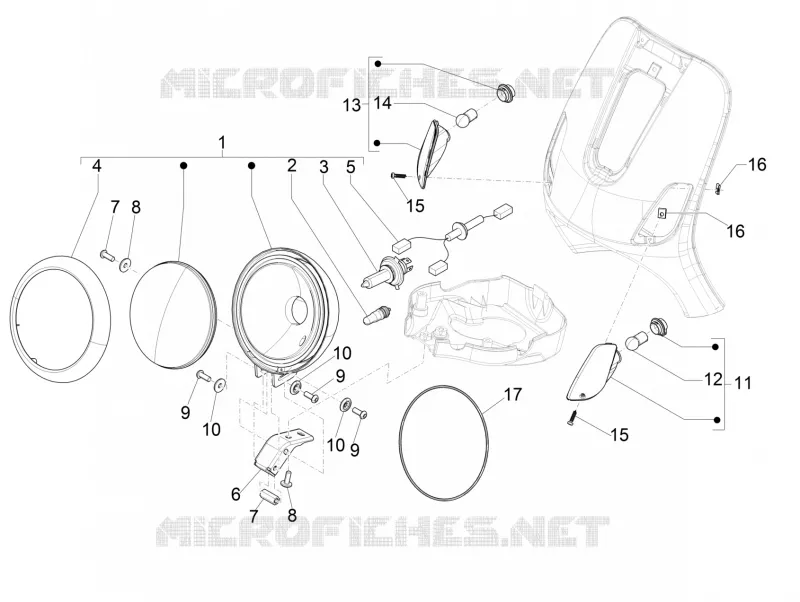

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
