Engine displacement
150
2
Model
LXV
3
Year
2015
4
Trim
LXV 4T 3V E3
5
Parts Catalog
Throttle body - Injector - Union pipe
6

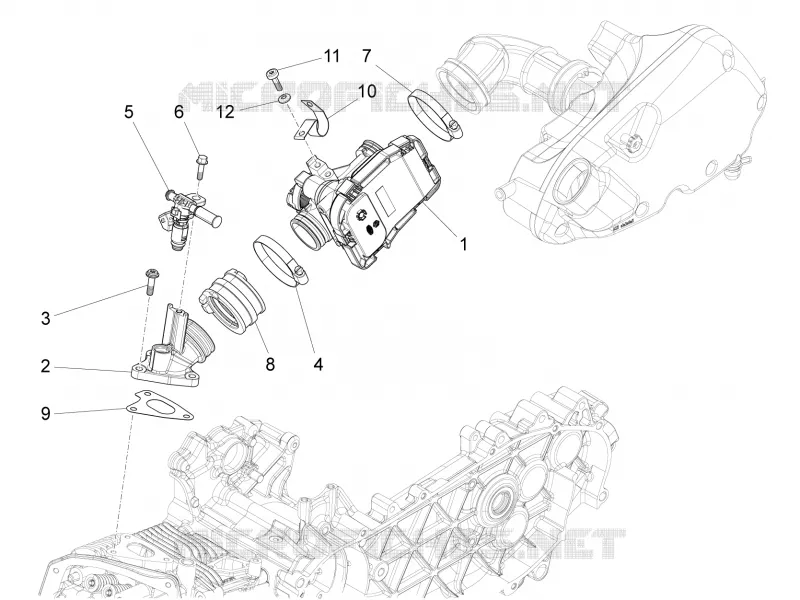

Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Stater - Electric starter
Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
9
10
11
12
1
Throttle body with E.C.U.
CM088104
Not Available
2
Union pipe
1A003906
Not Available
2
Induction joint with I.P.
B018995
Not Available
3
Antitampering screw M6x22
B016007
Not Available
4
Hose clamp
B016006
Not Available
5
Injector complete with connection
8799715
$204,27 Unit Price incl. VAT
6
Screw w/ flange M5x20
872269
$3,70 Unit Price incl. VAT
7
Hose clamp
B016009
Not Available
8
Hose
B016668
Not Available
9
Gasket
1A003750
$0,50 Unit Price incl. VAT
10
Metallic clamp
642044
$1,01 Unit Price incl. VAT
11
Screw M5x15
873653
$0,92 Unit Price incl. VAT
12
Washer
012528
$0,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
