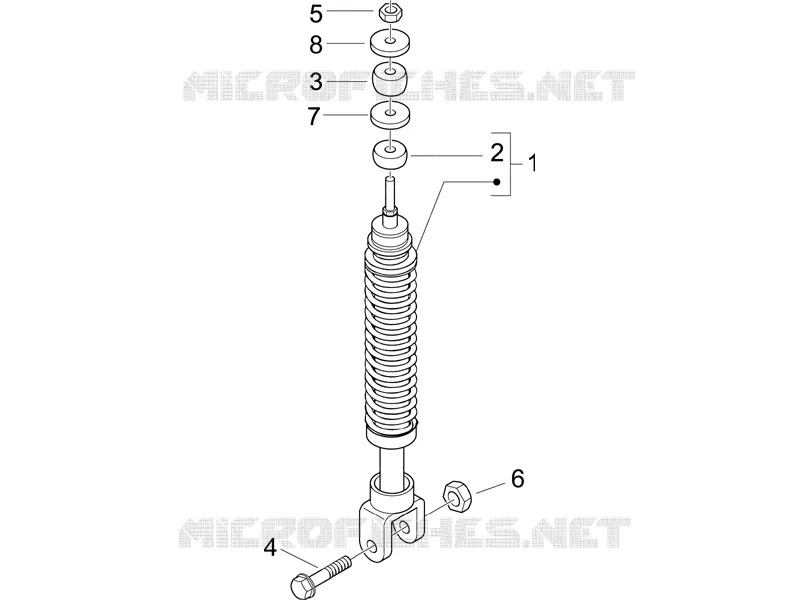

Rear suspension - Shock absorber/s
1
2
3
4
5
6
7
8
1
Complete rear shock absorber
600488
Not Available
2
Pad
274084
Not Available
3
Upper buffer
178150
$0,92 Unit Price incl. VAT
4
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
5
Nut M8
021108
$0,25 Unit Price incl. VAT
6
Self locking nut M10
232108
Not Available
6
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
7
Flat washer
267038
$0,67 Unit Price incl. VAT
8
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
