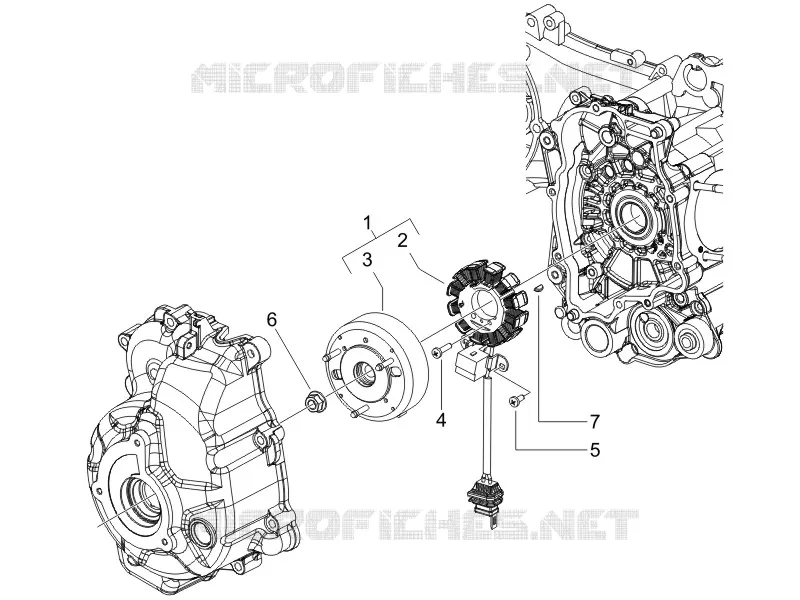

Flywheel magneto
1
2
3
4
5
6
7
1
Flywheel Magneto Assy.
58037R
Not Available
1
Complete magneto flywheel
58136R
$113,40 Unit Price incl. VAT
2
Complete stator (Kokusan)
639865
$49,95 Unit Price incl. VAT
2
Stator
830296
Not Available
2
Stator cpl.
584525
Not Available
3
(Mitsuba) complete rotor
293492
$21,09 Unit Price incl. VAT
3
Complete rotor (Kokusan)
584526
$29,26 Unit Price incl. VAT
4
screw M5x21
015856
$0,16 Unit Price incl. VAT
5
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
5
Screw M5x14
873979
$0,34 Unit Price incl. VAT
6
Transmission key
000267
$1,19 Unit Price incl. VAT
7
Flanged nut
289005
$2,99 Unit Price incl. VAT
8
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
8
Fan
828765
$2,77 Unit Price incl. VAT
9
Maintenance
827847
$0,77 Unit Price incl. VAT
10
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
11
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
