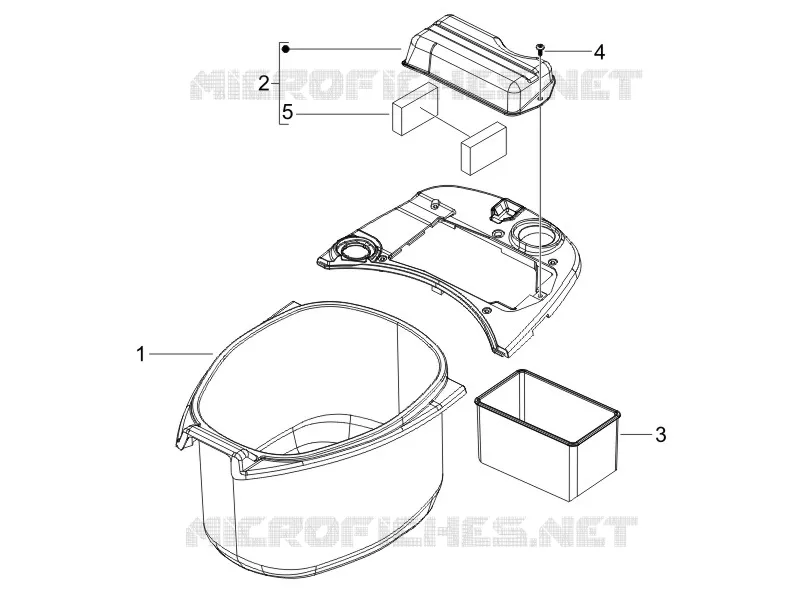

Helmet huosing - Undersaddle
1
2
3
4
1
Helmet compartment
622131
Not Available
2
Battery flap
573123
Not Available
2
Complete battery cover
576017
$20,60 Unit Price incl. VAT
3
Float chamber
299047
$10,17 Unit Price incl. VAT
3
Float chamber
297369
Not Available
4
Self-tap screw
576189
$0,05 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
