1
Engine displacement
150
2
Model
LX
3
Year
2011
4
Trim
LX 4T ie E3
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Reduction unit
by
Driving mirror/s
Fork/steering tube - Steering bearing unit
1
2
3
4
7
8
12
14
17
18
19
20
21
22
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
51
52
53
54
55
56
57
58
62
63
65
66
67
68
69
70
1
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
2
Upper thrust ring
650693
Not Available
3
Missing description
000000
Not Available
4
Bearing protection hood
665735
Not Available
7
Lower steering bearing
65007545
$25,55 Unit Price incl. VAT
8
Missing description
000000
Not Available
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
17
Washer
012535
$0,08 Unit Price incl. VAT
18
Nut
021210
$0,16 Unit Price incl. VAT
19
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
20
Pad
174085
$1,18 Unit Price incl. VAT
21
Washer
174088
$0,84 Unit Price incl. VAT
22
Pad
174874
$2,36 Unit Price incl. VAT
24
Spring washer
709047
$0,08 Unit Price incl. VAT
25
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
26
Circlip
006422
$0,16 Unit Price incl. VAT
27
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
28
screw M5x16
031058
$2,95 Unit Price incl. VAT
29
O-ring
177408
$0,08 Unit Price incl. VAT
30
Washer
177414
$0,75 Unit Price incl. VAT
31
Washer
177445
$0,34 Unit Price incl. VAT
32
Ring
177521
$0,66 Unit Price incl. VAT
33
Pad
266841
$5,53 Unit Price incl. VAT
34
Pinion
267819
$7,69 Unit Price incl. VAT
35
Plate
269118
$4,82 Unit Price incl. VAT
36
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
Not available
5602865
$166,91 Unit Price incl. VAT
39
Drawn cap
177436
$9,18 Unit Price incl. VAT
40
Ring
177494
$1,85 Unit Price incl. VAT
41
Snap ring
006635
$0,25 Unit Price incl. VAT
42
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
43
Roller cage
177442
$4,04 Unit Price incl. VAT
44
Gasket ring
177443
$1,77 Unit Price incl. VAT
45
Bearing
177610
$8,41 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
47
Brake disc
56395R
$21,87 Unit Price incl. VAT
47
Brake disc
650791
Not Available
48
Front wheel hub
560284
Not Available
49
Ring gear counts Km socket
267818
$33,03 Unit Price incl. VAT
51
Steering tube complete with arm
6501315
$304,62 Unit Price incl. VAT
52
Gasket
006731
$0,34 Unit Price incl. VAT
53
Gasket ring
119219
$0,67 Unit Price incl. VAT
54
Piston pin
177451
$3,03 Unit Price incl. VAT
55
Roller cage
198513
$5,97 Unit Price incl. VAT
56
Complete rear suspension arm
651482
Not Available
57
Complete front shock absorber
665541
$72,90 Unit Price incl. VAT
58
Axle plug
665657
$5,38 Unit Price incl. VAT
62
Front suspension arm cover
649113
$16,25 Unit Price incl. VAT
63
Front suspension cover
60041640BR
Not Available
63
Front suspension cover
60041640C5
$90,69 Unit Price incl. VAT
63
Front suspension cover
6004164
$72,85 Unit Price incl. VAT
63
Front suspension cover
60041640GP
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041620DE
Not Available
63
Front suspension cover
60041600H5
Not Available
63
Front suspension cover
60041620M5
Not Available
63
Front suspension cover
60041600VL
Not Available
63
Front suspension cover
60041620R7
$127,12 Unit Price incl. VAT
63
Front suspension cover
60041640ND
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041600M4
Not Available
65
Split pin
012789
$0,16 Unit Price incl. VAT
66
Nut
021114
$0,51 Unit Price incl. VAT
67
Cap
177609
$2,19 Unit Price incl. VAT
68
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
69
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
70
screw
031120
$0,42 Unit Price incl. VAT

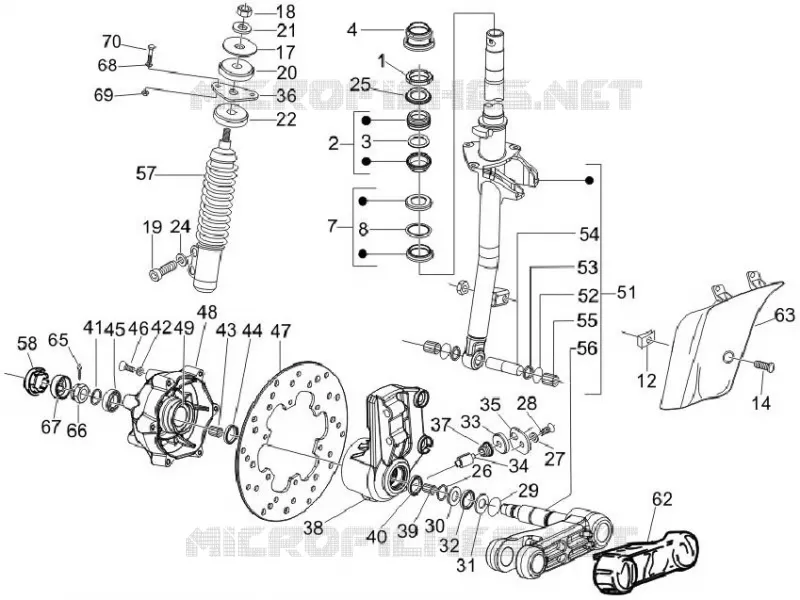

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
