1
Engine displacement
150
2
Model
LX
3
Year
2011
4
Trim
LX 4T ie E3
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Rocking levers support unit

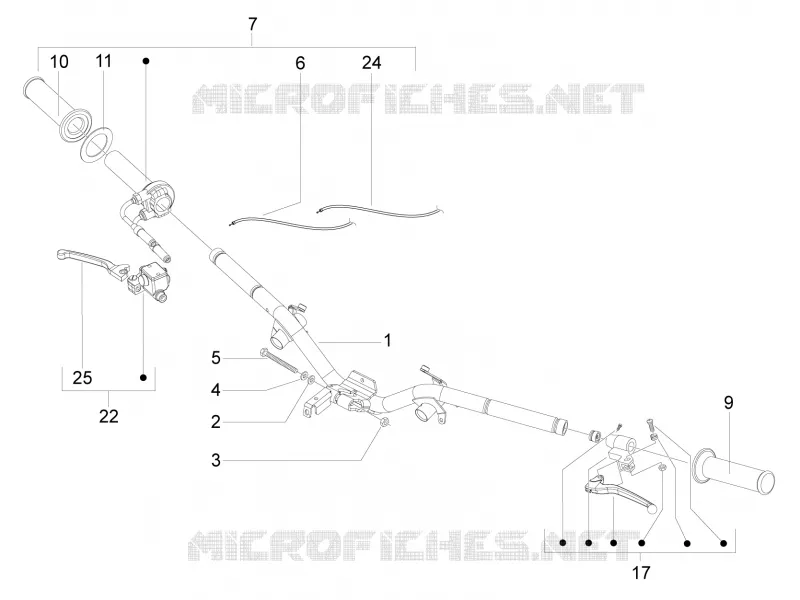

Handlebars - Master cil.
1
2
3
4
5
6
7
9
10
11
17
22
24
25
1
Handlebar with U.P.
6568664
Not Available
1
Handlebar with U.P.
656866
Not Available
2
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
3
Nut M10
015330
$0,25 Unit Price incl. VAT
4
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
5
Hex socket screw
655554
$3,70 Unit Price incl. VAT
6
Throttle closing transmission
666615
$23,17 Unit Price incl. VAT
7
Throttle control sleeve assembly
668086
$35,59 Unit Price incl. VAT
7
Throttle control sleeve assembly
666613
Not Available
9
Complete left hand grip
666130
Not Available
10
Grip, r.h.
666132
$4,95 Unit Price incl. VAT
11
Ring
666129
$5,53 Unit Price incl. VAT
17
Left hand grip with rear brake lever
651034
$23,36 Unit Price incl. VAT
22
Front brake hydraulic pump
665830
Not Available
22
(Heng Tong) Brake pump
CM085401
$55,73 Unit Price incl. VAT
24
Throttle opening transmission
666614
Not Available
25
Brake lever (Heng Tong)
666558
$12,69 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
