1
Engine displacement
150
2
Model
LX
3
Year
2011
4
Trim
LX 4T ie E3
5
Parts Catalog

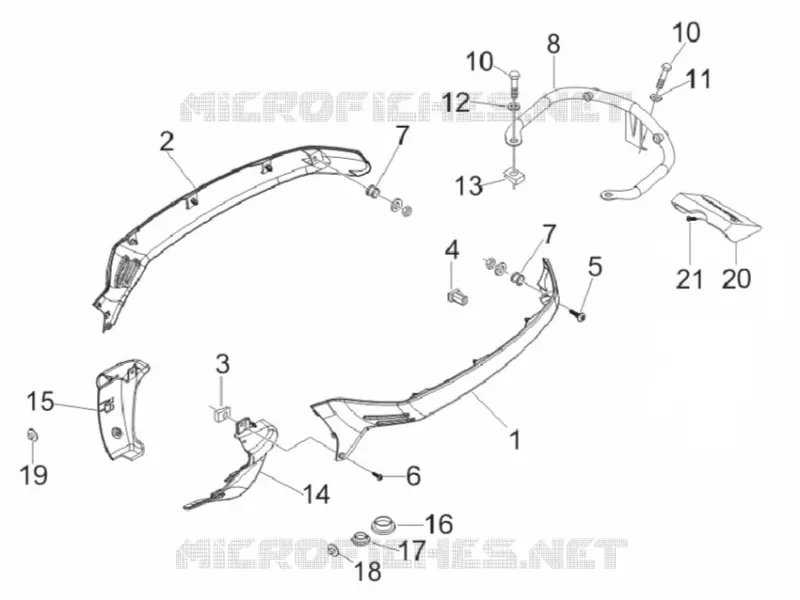

Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Swinging arm
by
Rear cover - Splash guard
Side cover - Spoiler
1
2
3
4
5
6
7
7
8
10
10
11
12
13
14
15
16
17
18
19
20
21
1
Left lower fairing
62212700VL
Not Available
1
Left lower fairing
62212720R7
Not Available
1
Left lower fairing
62212740ND
Not Available
1
Left lower fairing
62212720C5
Not Available
1
Left lower fairing
62212720M5
$87,87 Unit Price incl. VAT
1
Left lower fairing
62212700M4
Not Available
1
Left lower fairing
62212720DE
Not Available
1
Left lower fairing
62212700H5
Not Available
1
Left lower fairing
62212740BR
$96,83 Unit Price incl. VAT
1
Left lower fairing
6221274
$78,24 Unit Price incl. VAT
1
Left lower fairing
62212700GP
Not Available
2
Right lower fairing
62212820C5
Not Available
2
Right lower fairing
62212800H5
Not Available
2
Right lower fairing
62212840ND
$96,83 Unit Price incl. VAT
2
Right lower fairing
6221284
$78,24 Unit Price incl. VAT
2
Right lower fairing
62212800VL
Not Available
2
Right lower fairing
62212820R7
Not Available
2
Right lower fairing
62212800M4
Not Available
2
Right lower fairing
62212820DE
$87,16 Unit Price incl. VAT
2
Right lower fairing
62212800GP
Not Available
2
Right lower fairing
62212840BR
Not Available
2
Right lower fairing
62212820M5
Not Available
3
Spring plate
CM017410
$0,34 Unit Price incl. VAT
4
Expansion plug
199190
$2,95 Unit Price incl. VAT
5
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
6
Self tapping screw
297498
$0,08 Unit Price incl. VAT
7
Elastic drift
463195
Not Available
8
saddle handle with u.p.
657109
$61,33 Unit Price incl. VAT
10
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
11
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
12
Washer
078307
$0,17 Unit Price incl. VAT
13
Spring plate M6
254485
$0,34 Unit Price incl. VAT
14
Left spoiler rear terminal
62212900H5
Not Available
14
Left spoiler rear terminal
62212900GP
Not Available
14
Left spoiler rear terminal
62212940ND
$58,72 Unit Price incl. VAT
14
Left spoiler rear terminal
62212940BR
$58,72 Unit Price incl. VAT
14
Left spoiler rear terminal
62212900VL
Not Available
14
Left spoiler rear terminal
62212940R7
Not Available
14
Left spoiler rear terminal
62212920DE
Not Available
14
Left spoiler rear terminal
62212920C5
Not Available
14
Left spoiler rear terminal
62212940M4
$58,72 Unit Price incl. VAT
14
Left spoiler rear terminal
62212940M5
$58,72 Unit Price incl. VAT
14
Left spoiler rear terminal
6221294
$47,20 Unit Price incl. VAT
15
Right spoiler rear terminal
62213020C5
Not Available
15
Right spoiler rear terminal
62213040ND
$58,72 Unit Price incl. VAT
15
Right spoiler rear terminal
62213020M5
Not Available
15
Right spoiler rear terminal
62213000VL
Not Available
15
Right spoiler rear terminal
6221304
$47,20 Unit Price incl. VAT
15
Right spoiler rear terminal
62213020R7
Not Available
15
Right spoiler rear terminal
62213020DE
Not Available
15
Right spoiler rear terminal
62213000H5
Not Available
15
Right spoiler rear terminal
62213040BR
Not Available
15
Right spoiler rear terminal
62213000GP
Not Available
15
Right spoiler rear terminal
62213000M4
Not Available
16
Cover
299557
$0,76 Unit Price incl. VAT
17
Cover
299558
$0,59 Unit Price incl. VAT
18
Cover
299559
$4,82 Unit Price incl. VAT
19
Spoiler cover
620556
Not Available
20
Saddle rear cover
623336
$12,30 Unit Price incl. VAT
21
Plug screw
268596
$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
