by

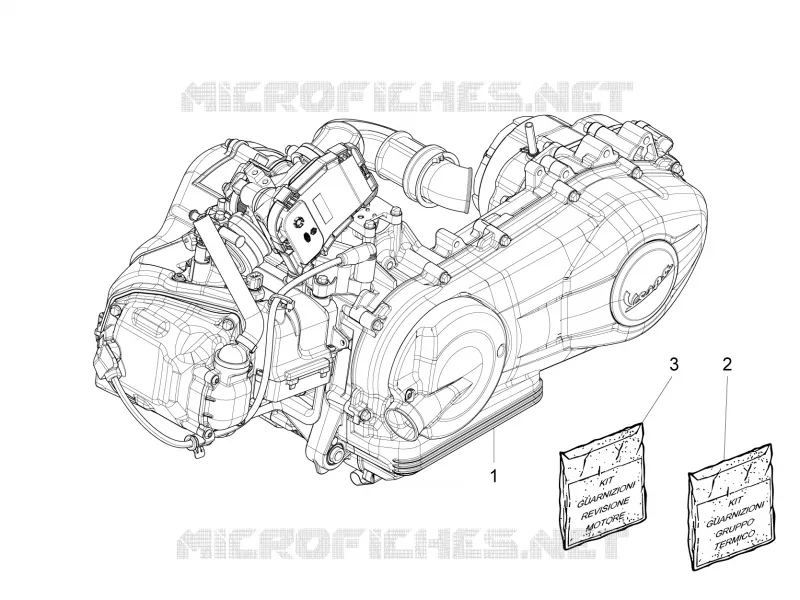

Engine, assembly
1
2
3
1
Engine
CM1628065
Not Available
1
Engine 150 4T/3V
CM162804
Not Available
2
Gask. set thermic unit
497638
$51,82 Unit Price incl. VAT
3
Gaskets kit
497639
$64,80 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
