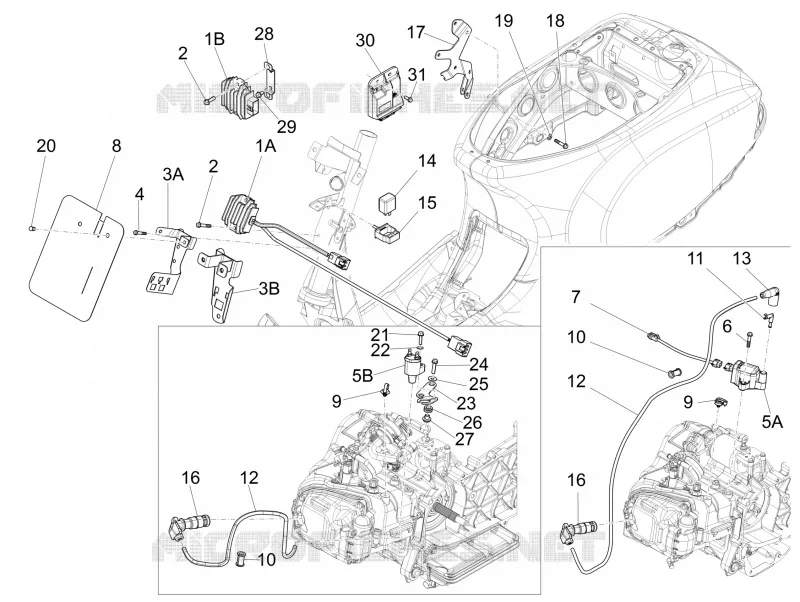

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1A
1B
2
2
3A
3B
4
5A
5B
6
7
8
9
9
10
10
11
12
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1A
Voltage regulator
58204R
$143,10 Unit Price incl. VAT
1B
Voltage regulator
58090R
Not Available
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3A
Connector bracket
641845
$15,22 Unit Price incl. VAT
3B
Connector bracket
1D000050
Not Available
4
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
5A
HT coil
641901
$52,29 Unit Price incl. VAT
5B
HT coil
CM255202
Not Available
6
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
7
Joint.p.
643235
Not Available
8
Relays protection plate
642234
$18,44 Unit Price incl. VAT
9
Hose clamp
641764
$0,25 Unit Price incl. VAT
10
Fairlead
563989
$0,32 Unit Price incl. VAT
11
HV terminal
641725
Not Available
12
H.V. cable
080341
$5,89 Unit Price incl. VAT
13
Insulating cap
641040
$4,45 Unit Price incl. VAT
14
Turn indicator control
640289
Not Available
15
Flexible support
291017
$4,88 Unit Price incl. VAT
16
Screened cap
642200
$17,82 Unit Price incl. VAT
17
Connectors support bracket
674907
$11,47 Unit Price incl. VAT
18
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
19
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
20
Clip
D9004468231
$4,62 Unit Price incl. VAT
21
Screw w/ flange M5x20
872269
$3,70 Unit Price incl. VAT
22
Washer
012528
$0,34 Unit Price incl. VAT
23
H.V. coil support bracket
1A000638
$8,16 Unit Price incl. VAT
24
Screw w/ flange M6x25
B016774
$0,34 Unit Price incl. VAT
25
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
26
Fairlead
487665
$0,84 Unit Price incl. VAT
27
Spacer
B018293
$2,95 Unit Price incl. VAT
28
Voltage regulator support bracket
1D000084
Not Available
29
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
30
Electronic control unit
1D000066R
Not Available
31
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
