1
Engine displacement
150
2
Model
LX
3
Year
2013
4
Trim
LX 4T 3V ie
5
Parts Catalog
Air filter
6

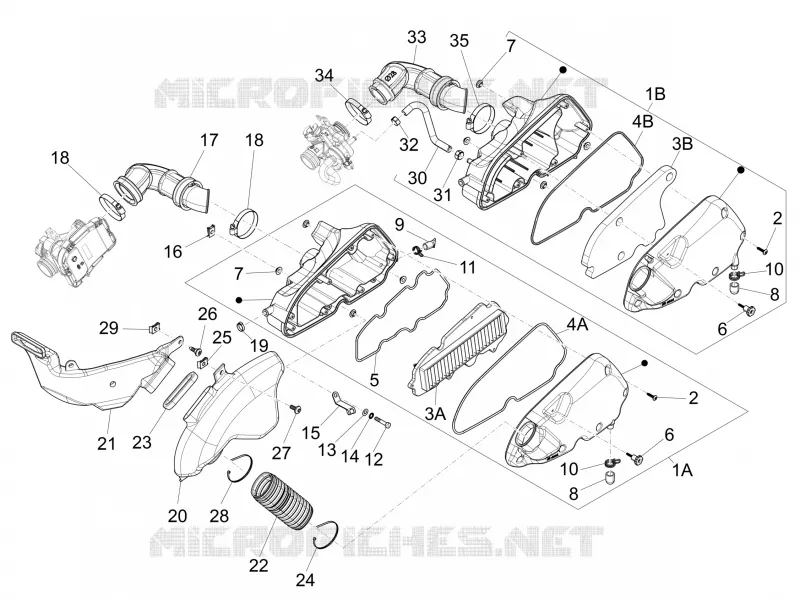

Parts Diagram
Parts Catalog
Locks
by
Oil pump
Air filter
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
18
17
16
15
14
13
12
11
10
10
9
8
8
7
7
6
6
5
4B
4A
3B
3A
2
2
1B
1A
1A
Air cleaner case
B016406
Not Available
1B
Air cleaner case
1A000347
Not Available
2
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
3A
Air filter
B016409
$40,50 Unit Price incl. VAT
3B
Filtering element
B018070
Not Available
4A
Gasket
B016410
Not Available
4B
Packing
B018071
$4,82 Unit Price incl. VAT
5
Gasket
B016411
Not Available
6
Air filter closing knob
479132
$10,92 Unit Price incl. VAT
7
Knurled bushing
830056
$0,34 Unit Price incl. VAT
8
Cap
827831
$2,60 Unit Price incl. VAT
9
Cap
B015752
$10,00 Unit Price incl. VAT
10
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
11
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
12
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
13
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
14
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
15
Hose clamp
B017353
Not Available
16
Spring plate M6
254485
$0,34 Unit Price incl. VAT
17
Air cleaner sleeve
B016432
Not Available
18
Hose clamp
614188
$2,61 Unit Price incl. VAT
19
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
20
Intake chamber
675417
$14,26 Unit Price incl. VAT
21
Intake pipe
675419
$32,35 Unit Price incl. VAT
22
Intake hose
675418
$15,98 Unit Price incl. VAT
23
Gasket
675421
$4,82 Unit Price incl. VAT
24
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
25
Spring plate M6
254485
$0,34 Unit Price incl. VAT
26
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
27
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
28
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
29
Spring plate M6
254485
$0,34 Unit Price incl. VAT
30
Intake pipe
1A000393
$5,38 Unit Price incl. VAT
31
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
32
Hose clamp
CM001913
$0,75 Unit Price incl. VAT
33
Air cleaner sleeve
1A003867
$23,22 Unit Price incl. VAT
33
Air cleaner sleeve
B019427
$25,82 Unit Price incl. VAT
34
Hose clamp
1A000833
$5,99 Unit Price incl. VAT
35
Hose clamp
614188
$2,61 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
