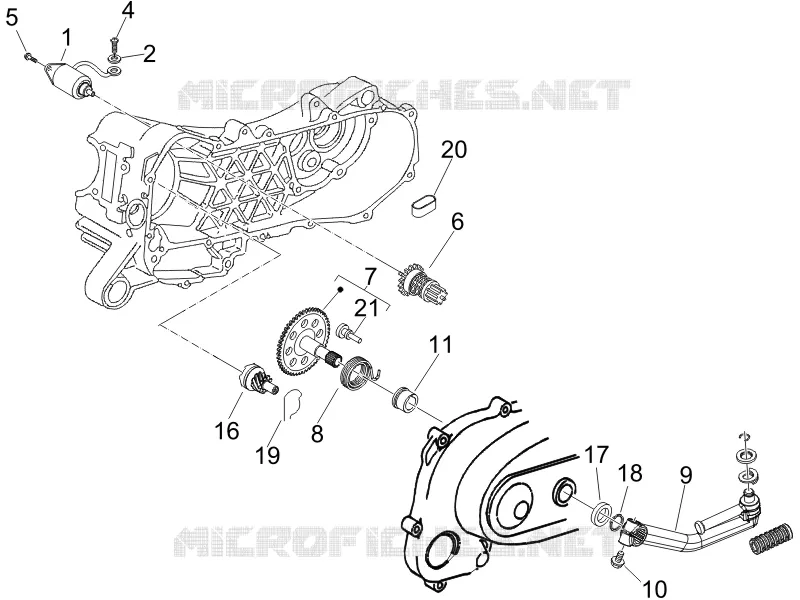

Stater - Electric starter
1
2
4
5
6
7
8
9
10
11
16
17
18
19
20
21
1
Starter motor
82611R
Not Available
2
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
4
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
5
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
6
Starter motor gear
82612R
$31,05 Unit Price incl. VAT
7
kick starter axle
830284
Not Available
8
Starter lever return spring
289495
$15,81 Unit Price incl. VAT
9
Starter lever
827608
$35,10 Unit Price incl. VAT
10
Screw w/ flange M6x30
289731
Not Available
11
Bush
431205
$3,65 Unit Price incl. VAT
16
Pinion
483539
$7,62 Unit Price incl. VAT
17
Washer 16,3x23,8
433987
$2,99 Unit Price incl. VAT
18
Circlip
006416
$0,08 Unit Price incl. VAT
19
Elastic spring
288673
$0,16 Unit Price incl. VAT
20
Pad
830260
$6,30 Unit Price incl. VAT
21
Pad
830281
$5,53 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
