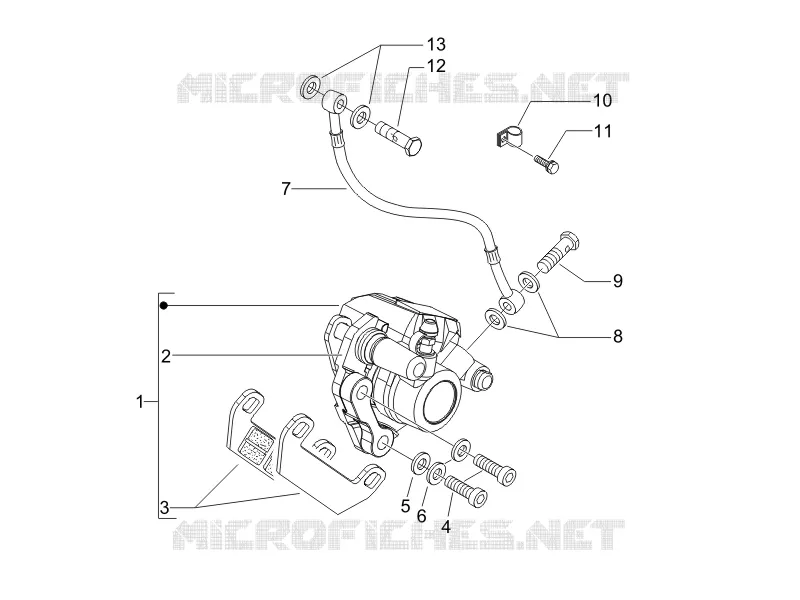

Brakes pipes - Calipers
1
2
3
4
5
6
7
8
10
11
13
1
Brake caliper (Heng-Tong)
CM065701
Not Available
2
Brake pipe support bracket
601610
Not Available
3
Brake pads kit (Heng-Tong)
647073
$20,81 Unit Price incl. VAT
4
screw
271596
$0,34 Unit Price incl. VAT
5
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
6
Spring washer
709047
$0,08 Unit Price incl. VAT
7
Piping
646893
Not Available
8
Gasket
127927
$0,25 Unit Price incl. VAT
10
Hose clamp
482291
$0,44 Unit Price incl. VAT
11
Screw w/ flange M6x30
289731
Not Available
13
Gasket
127927
$0,25 Unit Price incl. VAT
52
Gasket
006731
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
