by

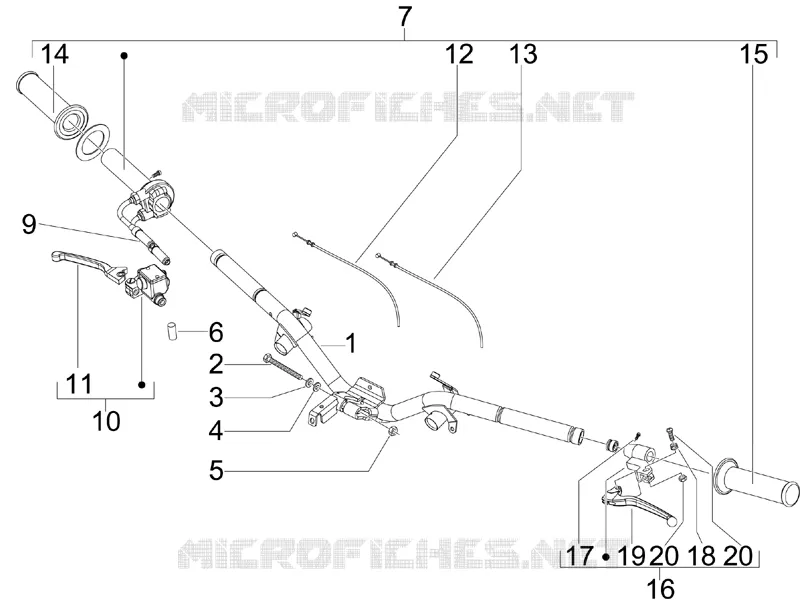

Handlebars - Master cil.
1
2
3
4
5
7
10
11
12
13
14
15
16
17
18
19
20
20
1
Handlebar
6221935
Not Available
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
7
Throttle control sleeve assembly
CM079730
$311,85 Unit Price incl. VAT
10
Front master cilinder
CM074904
$125,55 Unit Price incl. VAT
11
Brake lever
646833
Not Available
12
Throttle opening transmission
648935
Not Available
13
Throttle closing transmission
648936
Not Available
14
Grip, r.h.
CM083804
$18,36 Unit Price incl. VAT
15
Grip, l.h.
CM083803
$18,36 Unit Price incl. VAT
16
Left hand grip with rear brake lever
CM063804
$51,30 Unit Price incl. VAT
17
Screw with bushing
123394
$3,70 Unit Price incl. VAT
18
Spring
267948
$4,89 Unit Price incl. VAT
19
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
20
Screw with nut
265249
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
