1
Engine displacement
125
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog
Central cover - Footrests
6

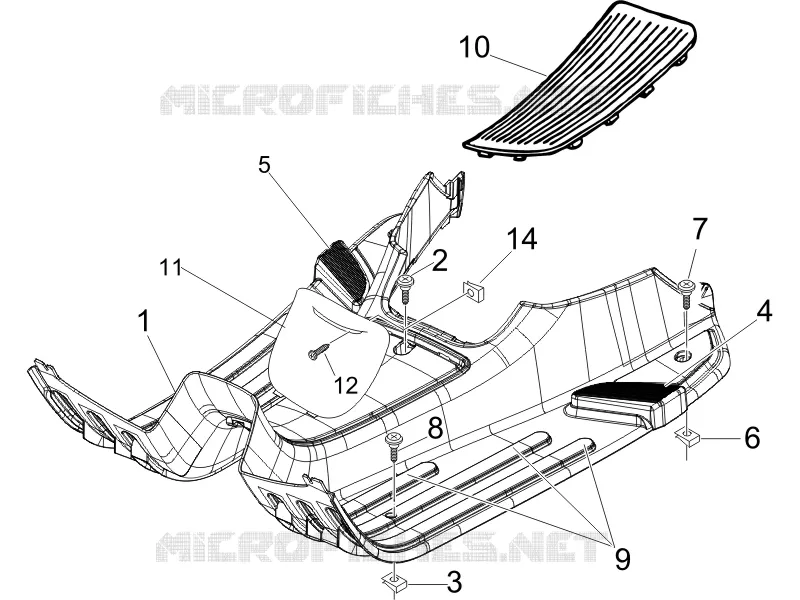

Parts Diagram
Parts Catalog
Flywheel magneto
by
Transmissions
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
14
1
Painted footrest
62212440M4
Not Available
1
FOOTBOARD ET4
6221244087
$528,26 Unit Price incl. VAT
1
Painted footrest
62212440R7
$528,26 Unit Price incl. VAT
1
Footrest
62212440F3
Not Available
1
Painted footrest
62212440DE
Not Available
1
FOOTBOARD ET4 125 UNPAINTED
62212440AF
Not Available
1
Painted footrest
62212440BR
$528,26 Unit Price incl. VAT
1
Footrest
62212440AH
$528,26 Unit Price incl. VAT
1
Painted footrest
62212440VG
Not Available
1
Painted footrest
62212440XN2
$528,26 Unit Price incl. VAT
1
Painted footrest
62212440GP
$528,26 Unit Price incl. VAT
1
Footrest
62212440EU
Not Available
1
Footrest
62212440F2
Not Available
1
Painted footrest
62212440ND
$528,26 Unit Price incl. VAT
2
Self-tap screw
576189
$0,05 Unit Price incl. VAT
3
Plate
CM017406
$3,65 Unit Price incl. VAT
4
LH footrest
622125
$8,16 Unit Price incl. VAT
5
RH footpad
622126
$8,16 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Screw m6x30
271891
$3,65 Unit Price incl. VAT
8
Self tapping screw
297498
$0,08 Unit Price incl. VAT
9
Kit strips, footboard
622139
Not Available
10
Mat
298243
$12,45 Unit Price incl. VAT
11
Flap
62213650ND
$73,85 Unit Price incl. VAT
11
Spark plug insp. door
622136
Not Available
11
Painted spark plug inspection cover
62213660ND
Not Available
11
Painted spark plug inspection cover
62213650R7
Not Available
11
S.PLUG DOOR -UNPAINTED-
62213600AF
Not Available
11
SPARE PLUG DOOR
62213650AF
Not Available
11
DOORS
62213660R7
Not Available
11
Painted spark plug inspection cover
62213650DE
Not Available
11
Flap
62213650F2
$67,74 Unit Price incl. VAT
11
Spark plug insp. door
62213600VG
Not Available
11
Painted spark plug inspection cover
62213600GP
Not Available
11
DOORS
62213660F2
Not Available
11
Flap
62213650F3
$78,24 Unit Price incl. VAT
12
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
14
Plate
CM017408
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
