Parts Catalog
Oil pump
6

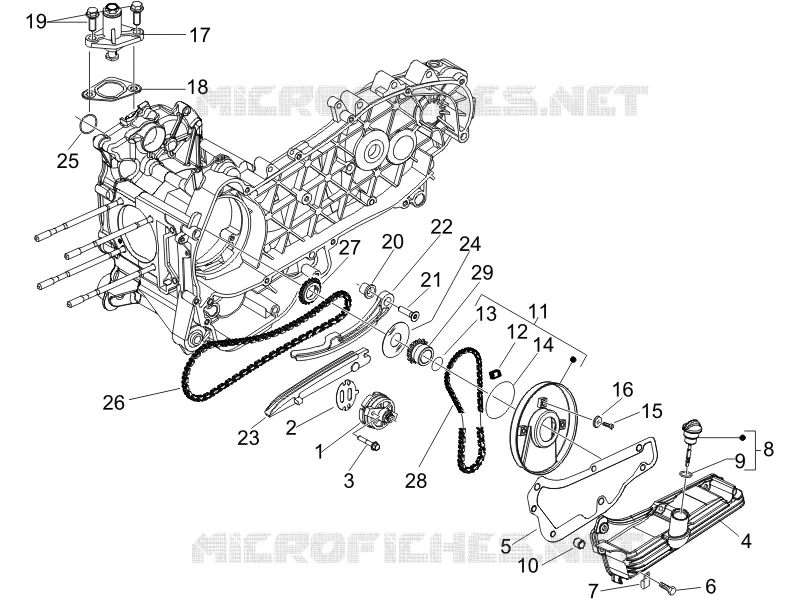

Parts Diagram
Parts Catalog
Crankshaft
by
Head unit - Valve
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Oil pump assembly
844352
Not Available
2
Carter-oil pump gasket
847929
$0,34 Unit Price incl. VAT
3
Screw w/ flange M5x35
829593
$0,50 Unit Price incl. VAT
4
Motor oil cup
843761
$13,95 Unit Price incl. VAT
5
Sump gasket
830128
$2,77 Unit Price incl. VAT
6
Screw w/ flange M6x30
289731
Not Available
7
Retainer clamp
487824
$0,33 Unit Price incl. VAT
8
Oil plug assembly
843364
$1,39 Unit Price incl. VAT
9
O-ring
479986
Not Available
10
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
11
Timing system cover
847116
$22,74 Unit Price incl. VAT
11
Timing system cover
483775
$16,82 Unit Price incl. VAT
12
Oil pump chain drift
434345
$2,77 Unit Price incl. VAT
13
Gasket ring
82538R
$8,01 Unit Price incl. VAT
14
Gasket ring
825620
$8,21 Unit Price incl. VAT
15
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
16
Plain washer
487937
$0,09 Unit Price incl. VAT
17
Complete chain tensioner
82650R
$34,52 Unit Price incl. VAT
18
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
19
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
20
Chain tensioner rod spacer
485868
$0,29 Unit Price incl. VAT
21
Screw w/ flange M6x25
414837
Not Available
22
Chain tensioner rod
840510
$2,15 Unit Price incl. VAT
23
Chain tensioner sliding block
828308
$1,34 Unit Price incl. VAT
24
Oil seal washer
483918
$0,53 Unit Price incl. VAT
25
O-Ring seal ring
825952
$0,15 Unit Price incl. VAT
26
Camshaft chain
82643R
$44,55 Unit Price incl. VAT
27
Timing chain pinion
82782R
$7,06 Unit Price incl. VAT
28
Oil pump chain
82649R
$13,37 Unit Price incl. VAT
29
Oil pump control pinion
82783R
$7,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
