1
Engine displacement
125
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog

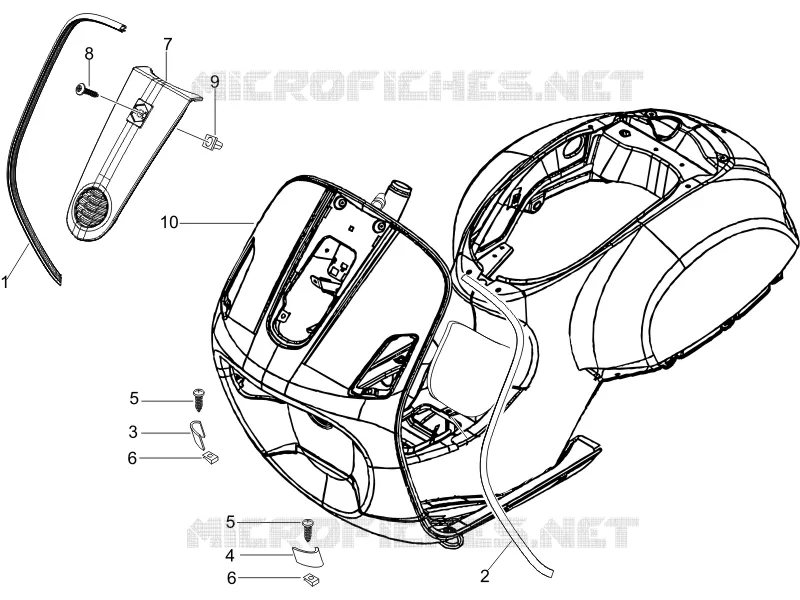

Front shield
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Supply system
Front shield
1
2
3
4
5
5
6
6
7
8
9
10
1
Right-hand shield edge
622188
$24,03 Unit Price incl. VAT
2
Left-hand shield edge
622187
$24,03 Unit Price incl. VAT
3
Butt strap DX
299965
$7,69 Unit Price incl. VAT
4
Butt strap SX
299964
$7,69 Unit Price incl. VAT
5
Screw d3,5x9,5
008432
$3,65 Unit Price incl. VAT
6
Spring plate
CM017403
$0,50 Unit Price incl. VAT
7
HANDLEBARS COVER
62290760ND
$125,27 Unit Price incl. VAT
7
Steering column cover
62290700AF
Not Available
7
Steering column cover
62290750F3
$125,27 Unit Price incl. VAT
7
Steering cover
62290700GP
Not Available
7
HANDLEBARS COVER
62290760R7
Not Available
7
Steering column cover
622907
Not Available
7
Steering column cover
62290750ND
Not Available
7
ET STEERING COVER
62290750DE
Not Available
7
ET STEERING COVER
62290750AF
$125,27 Unit Price incl. VAT
7
Painted steering cover
62290700VG
Not Available
7
HANDLEBARS COVER
62290760F2
Not Available
7
Steering column cover
62290750R7
Not Available
7
Steering column cover
62290750F2
$125,27 Unit Price incl. VAT
8
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
9
Expansion plug
199190
$2,95 Unit Price incl. VAT
10
Body shield
6221145
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
