Head unit - Valve for GILERA PIAGGIO VESPA LX 4T 3V ie from 2012

Head unit - Valve

1

Cylinder head assembly

B013706

Not Available

1

TESTA CILINDRO COMPLETA

1A006944

$443,88 Unit Price incl. VAT

2

GUARNIZIONE TESTA/MARMITTA

434716

$1,35 Unit Price incl. VAT

3

PRIGIONIERO SPECIALE

435629

$0,67 Unit Price incl. VAT

4

TAPPO FILETTATO M6X10

842360

$0,75 Unit Price incl. VAT

5

SCODELLINO SUPERIORE

B013833

$1,26 Unit Price incl. VAT

6

SCODELLINO INFERIORE

483711

$1,35 Unit Price incl. VAT

7

Valve, in Ã˜20

B013715

$29,21 Unit Price incl. VAT

8

VALVOLA DI SCARICO Ø22

B013716

$26,82 Unit Price incl. VAT

9

MOLLA VALVOLA ESTERNA

879456

$4,54 Unit Price incl. VAT

10

SEMICONO

B015484

$0,92 Unit Price incl. VAT

11

ANELLO DI TENUTA VALVOLA K8

436438

$1,34 Unit Price incl. VAT

12

ANELLO DI TENUTA VALVOLA

843307

$2,77 Unit Price incl. VAT

13

GUARNIZIONE TESTA/CILINDRO

1A000173

$6,38 Unit Price incl. VAT

13

Cylinder/head gasket

879478

Not Available

14

DADO M8X1.25 (CH.12)

411296

$0,50 Unit Price incl. VAT

15

GRANO DI RIFERIMENTO

435571

$0,50 Unit Price incl. VAT

16

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

17

VITE ESAGONALE FLANGIATA M6X112,5

B016807

$1,26 Unit Price incl. VAT

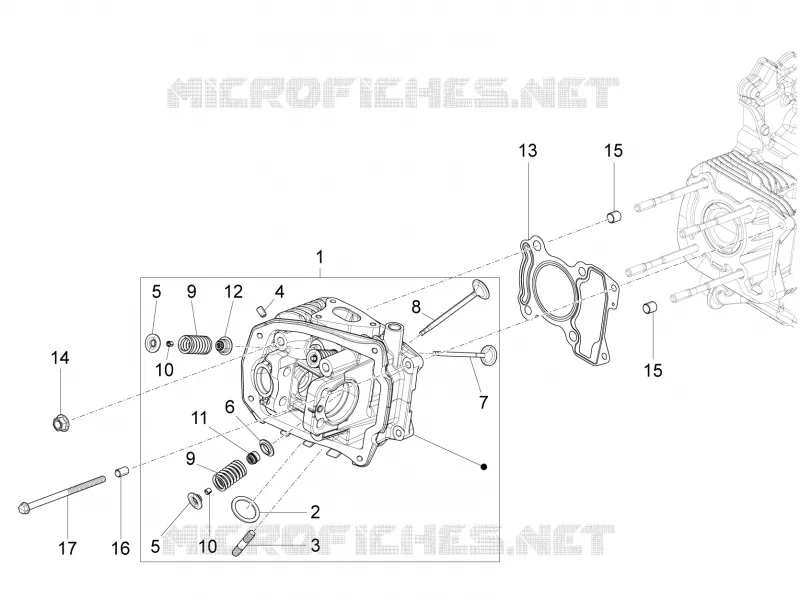

Find the detailed Head unit - Valve GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
