Air filter for GILERA PIAGGIO VESPA LX 4T 3V ie from 2012

Air filter

1

DEPURATORE ARIA COMPLETO

B017968

Not Available

2

VITE AUTOFILETTANTE (3X20)

258146

$0,25 Unit Price incl. VAT

3

Filtering element

B018070

Not Available

4

GUARNIZIONE ESTERNA

B018071

$4,82 Unit Price incl. VAT

5

CAPPUCCIO SCATOLA DEPURATORE

827831

$2,60 Unit Price incl. VAT

6

POMELLO

479132

$10,92 Unit Price incl. VAT

7

BOCCOLA ZIGRINATA

830056

$0,34 Unit Price incl. VAT

8

FASCETTA STRINGITUBO

CM002910

$0,59 Unit Price incl. VAT

9

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

10

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

11

VITE METRICA CON CODOLO

575249

$0,66 Unit Price incl. VAT

12

VITE

018640

$0,16 Unit Price incl. VAT

13

RONDELLA PIANA 6,4x12x1

003056

$0,08 Unit Price incl. VAT

14

ROSETTA ELASTICA PIANA CON DENT.ESTERNA

012533

$0,67 Unit Price incl. VAT

15

FASCETTA.

B017353

Not Available

16

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

17

MANICOTTO DEPURATORE

B017409

$14,30 Unit Price incl. VAT

18

FASCETTA STRINGITUBO Ø40-60

614188

$2,61 Unit Price incl. VAT

19

FASCETTA STRINGITUBO

CM001904

$0,75 Unit Price incl. VAT

20

CAMERA DI ASPIRAZIONE

675417

$14,26 Unit Price incl. VAT

21

TUBO DI ASPIRAZIONE.

675419

$32,35 Unit Price incl. VAT

22

MANICOTTO DI ASPIRAZIONE

675418

$15,98 Unit Price incl. VAT

23

GUARNIZIONE

675421

$4,82 Unit Price incl. VAT

24

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

25

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

26

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

27

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

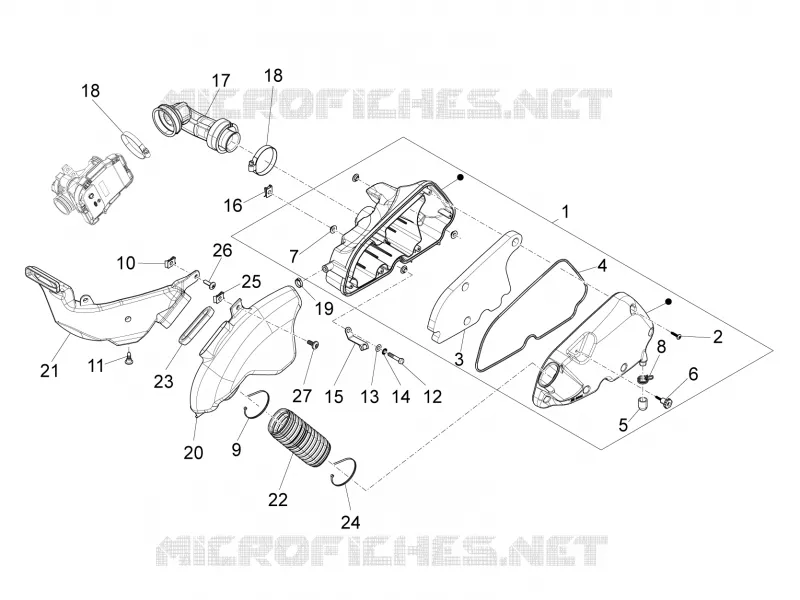

Find the detailed Air filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
