Engine displacement
125
2
Model
LX
3
Year
2012
4
Trim
LX 4T 3V ie
5
Parts Catalog
Main cable harness
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Handlebars coverages
Main cable harness
1
1
1
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
GRUPPO CAVETTI TELAIO VESPA LX (LEM)
680174
$475,73 Unit Price incl. VAT
1
GRUPPO CAVETTI DEL TELAIO
1D000106
Not Available
2
CAPPUCCIO DI PROTEZIONE
583971
$0,59 Unit Price incl. VAT
3
PORTAFUSIBILI (PER 2 FUSIBILI "A LAMA")
580653
$35,69 Unit Price incl. VAT
4
FUSIBILE 7,5 A
252945
$0,42 Unit Price incl. VAT
5
FUSIBILE LAMELLARE 15A
290860
$5,73 Unit Price incl. VAT
6
FUSIBILE LAMELLARE 10
292507
$0,42 Unit Price incl. VAT
7
FASCETTA
640879
$0,92 Unit Price incl. VAT
8
FUSIBILE 20 A.
580561
$0,42 Unit Price incl. VAT
9
CAPPUCCIO DI PROTEZIONE
581061
$1,37 Unit Price incl. VAT
10
TAPPO PER CONNETTORE SUPER SEAL 3VIE
582928
$1,01 Unit Price incl. VAT
11
CAPPUCCIO ISOLANTE
292577
Not Available
12
STAFFA SUPPORTO FUSIBILI
642076
$6,30 Unit Price incl. VAT
13
VITE AUTOMASC.TESTA ESAG.TRILOBATA
641204
$0,34 Unit Price incl. VAT
14
RONDELLA PIANA 6,4x12x1
003056
$0,08 Unit Price incl. VAT
15
RONDELLA ELASTICA (6,4X11,8X1)
016406
$0,34 Unit Price incl. VAT
16
STAFFA SUPPORTO CAVI.
643240
$4,01 Unit Price incl. VAT
17
MOLLA PER CONNETTORE
584520
$5,38 Unit Price incl. VAT
18
MOLLETTA RITEGNO TUBI
CM006903
$1,43 Unit Price incl. VAT
19
MOLLETTA RITEGNO TUBI/CAVI
CM006908
$0,50 Unit Price incl. VAT
20
MOLLETTA FISS.TUBI CARBURANTE
CM006910
$0,25 Unit Price incl. VAT
21
MOLLETTA RITEGNO TUBI
CM006912
$0,42 Unit Price incl. VAT
22
MOLLETTA PER CONNETTORE
639560
$0,67 Unit Price incl. VAT
23
MOLLETTA PER CONNETTORE
641599
$4,82 Unit Price incl. VAT
24
MOLLETTA PER CONNETTORE
641769
$2,27 Unit Price incl. VAT
25
PIASTRINA
641955
$3,65 Unit Price incl. VAT
26
Screw M5x16
015715
$2,25 Unit Price incl. VAT
27
RONDELLA ELASTICA 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
28
PIASTRINA ELASTICA
248419
$0,67 Unit Price incl. VAT
29
Earth braid
581309
$3,49 Unit Price incl. VAT
30
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
31
PASSACAVO
294754
$0,51 Unit Price incl. VAT
32
MANCETTA ADESIVA
577594
$0,42 Unit Price incl. VAT
33
MOLLETTA RITEGNO TUBI/CAVI
CM013202
$1,10 Unit Price incl. VAT
33
MOLLETTA RITEGNO TUBI
CM013201
$0,40 Unit Price incl. VAT

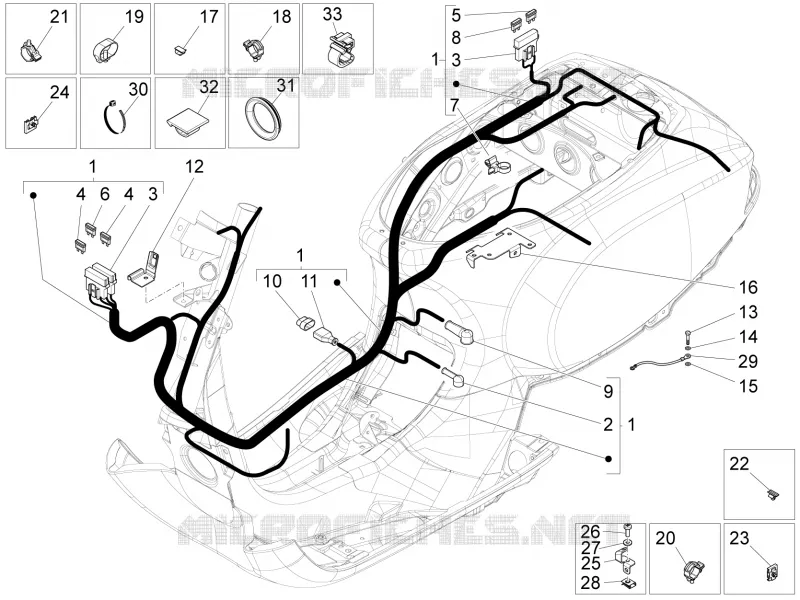

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
