Oil pump for GILERA PIAGGIO VESPA LX 4T 3V ie from 2012

Oil pump

1

POMPA OLIO COMPLETA

82948R

$14,37 Unit Price incl. VAT

2

GUARNIZIONE CARTER/POMPA OLIO

B015460

$0,50 Unit Price incl. VAT

3

VITE A TESTA ESAGONALE FLANGIATA

829593

$0,50 Unit Price incl. VAT

4

COPPA OLIO

B013437

$22,19 Unit Price incl. VAT

5

GUARNIZIONE COPPA OLIO

B014152

$2,02 Unit Price incl. VAT

6

VITE ESAGONALE FLANGIATA M6x30

B016792

$0,25 Unit Price incl. VAT

7

FASCETTA DI RITEGNO

B017678

$3,65 Unit Price incl. VAT

8

Plain washer

487937

$0,09 Unit Price incl. VAT

9

VITE TCIC M5X12

015585

$0,08 Unit Price incl. VAT

10

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

11

RONDELLA PARAOLIO

B015450

$3,65 Unit Price incl. VAT

12

ANELLO DI TENUTA (O-RING)

B015451

$0,50 Unit Price incl. VAT

13

Camshaft chain

879460

Not Available

14

PIGNONE DISTRIBUZIONE

82782R

$7,06 Unit Price incl. VAT

15

CATENA POMPA OIL 50 PS

B015459

$4,54 Unit Price incl. VAT

16

PIGNONE COM.POMPA OLIO

82783R

$7,99 Unit Price incl. VAT

17

COMPLESSIVO TENDICATENA

82650R

$34,52 Unit Price incl. VAT

18

GUARNIZIONE TENDICATENA/CILINDRO

B015444

$4,82 Unit Price incl. VAT

19

VITE ESAGONALE FLANGIATA M6X16 CL10,9

B016777

$0,16 Unit Price incl. VAT

20

Chain tensioner rod spacer

B015445

$0,76 Unit Price incl. VAT

21

VITE ESAGONALE FLANGIATA M6X25 CL10,9

B016774

$0,34 Unit Price incl. VAT

22

Chain tensioner rod

879458

Not Available

23

PATTINO FISSO

879459

$6,47 Unit Price incl. VAT

24

Timing system cover

B0154155

Not Available

25

TAMPONE CATENA POMPA OLIO.

434345

$2,77 Unit Price incl. VAT

26

Gasket ring 24x35x7

B015448

Not Available

27

ANELLO DI TENUTA (O-RING)

B015449

$4,96 Unit Price incl. VAT

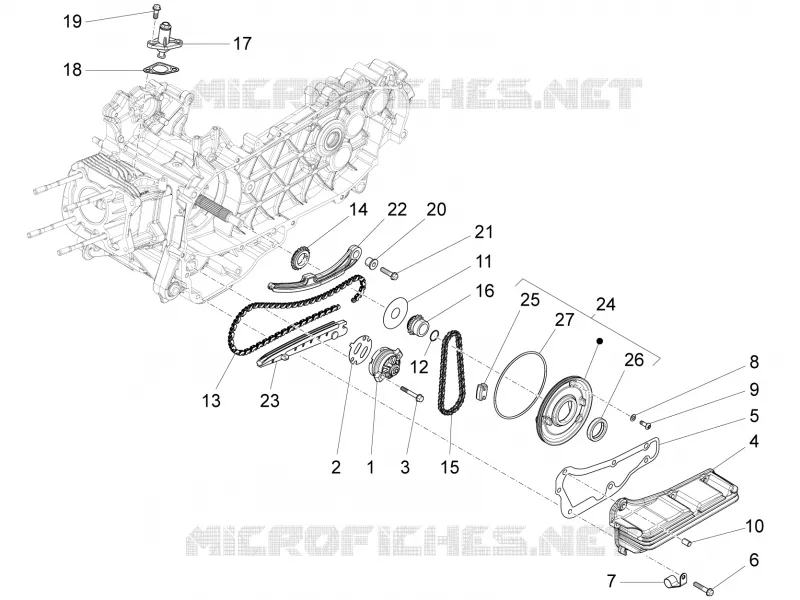

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
