Crankcase for GILERA PIAGGIO VESPA LX 4T 3V ie from 2012

Crankcase

1

CARTER COMPLETO CLASSE 2 X RICAMBI

CM2658010B

$1 878,18 Unit Price incl. VAT

1

CARTER COMPLETO CLASSE 1 X RIC.

CM2658010A

$1 878,18 Unit Price incl. VAT

1

Complete crankcase 1st cat.

CM1682010001

Not Available

1

2nd cat. complete crankcase

CM1682010002

$2 228,61 Unit Price incl. VAT

2

UGELLO CALIBRATO PER CARTER

B018059

$0,59 Unit Price incl. VAT

3

SPINA RIFERIMENTO (D.9,5 H=15)

B015956

$0,75 Unit Price incl. VAT

4

TAPPO FILETTATO CONICO M12x1,5x11

B015433

$2,66 Unit Price incl. VAT

5

UGELLO CALIBRATO

880706

$2,61 Unit Price incl. VAT

6

GRANO DI RIFERIMENTO

B015957

$0,59 Unit Price incl. VAT

7

CUSCINETTO RADIALE 22.50.14

83027R

$9,16 Unit Price incl. VAT

8

CUSCINETTO RADIALE 15.42.13

83026R

$4,46 Unit Price incl. VAT

9

Stud bolt

879887

Not Available

10

Engine connection silent block

B015437

$17,07 Unit Price incl. VAT

11

Locating dowel

B015958

$3,65 Unit Price incl. VAT

12

ANELLO ELASTICO (12x26,9x1,2)

B015959

$0,34 Unit Price incl. VAT

13

Gasket ring 22x35x7

B014137

$3,65 Unit Price incl. VAT

14

LAMIERINO RITEGNO CORONA AVVIAMENTO

876646

$0,76 Unit Price incl. VAT

15

Screw M5x10

018575

$2,95 Unit Price incl. VAT

16

Oil pressure adjusting valve

B015432

$2,61 Unit Price incl. VAT

17

VITE TESTA ESAG. FLANG. M6x60 UNI-1665

B016425

$1,01 Unit Price incl. VAT

18

Half crankcase gasket

B015429

$0,92 Unit Price incl. VAT

19

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

20

PARATIA OLIO

B014134

$4,12 Unit Price incl. VAT

21

PARATIA OLIO SUPERIORE

B014135

$2,02 Unit Price incl. VAT

22

MOLLA VALVOLA PRESSIONE OLIO

B015431

$0,50 Unit Price incl. VAT

23

INSERTO PORTA FILTRO COMPLETO

B015430

$3,87 Unit Price incl. VAT

24

GUARNIZIONE SEZ.CIRCOLARE

431065

$0,42 Unit Price incl. VAT

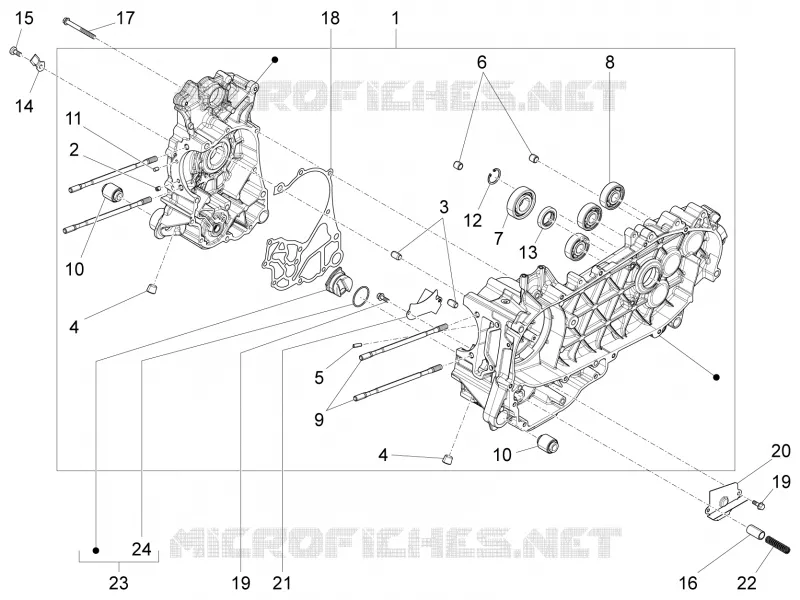

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
