Engine displacement
125
2
Model
LX
3
Year
2013
4
Trim
LX 4T 3V ie
5
Parts Catalog
Throttle body - Injector - Union pipe
6
Parts Diagram
Parts Catalog
Rear brake - Brake jaw
by
Crankcase
Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Throttle body with electronic control unit
CM084913
Not Available
2
Union pipe
880843
Not Available
3
Gasket
B015678
Not Available
4
screw M6x22
828152
$0,15 Unit Price incl. VAT
5
INIETTORE COMPLETO DI RACC.X RIC.
8799715
$204,27 Unit Price incl. VAT
6
VITE TESTA ESAG.FLANG. 8X20XM5
872269
$3,70 Unit Price incl. VAT
7
Coupling sleeve
880847
$4,82 Unit Price incl. VAT
8
FASCETTA STRINGITUBO Ø40-60
614188
$2,61 Unit Price incl. VAT
9
Hose clamp
709532
Not Available
10
FASCETTA METALLICA
642044
$1,01 Unit Price incl. VAT
11
VITE AUTOMASCHIANTE A SEZ. TRILOBATA
873653
$0,92 Unit Price incl. VAT
12
RONDELLA ELASTICA BOMBATA
012528
$0,34 Unit Price incl. VAT
13
STAFFA SUPPORTO TUBO CARBURANTE CON P.I.
1A000390
$5,38 Unit Price incl. VAT
14
CORPO FARFALLATO Ø28
58282R
$221,94 Unit Price incl. VAT
15
Coupling sleeve
B019426
$10,35 Unit Price incl. VAT

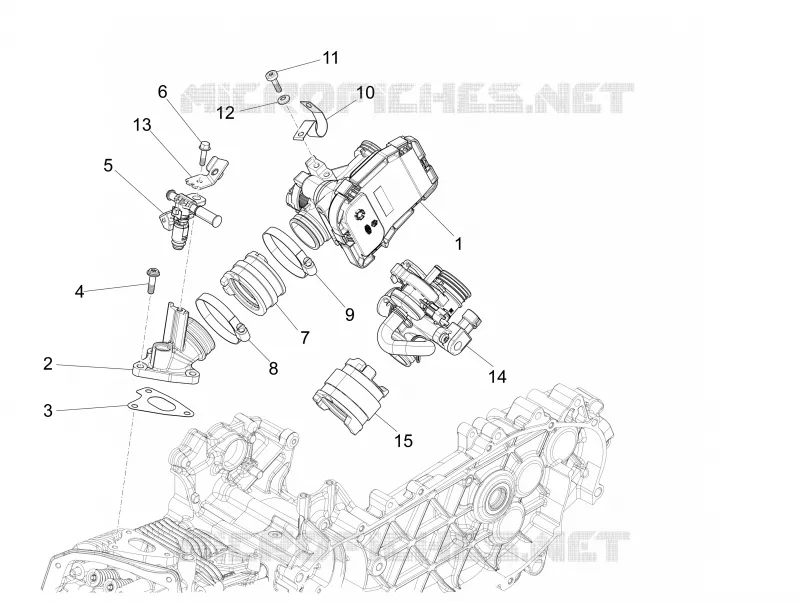

Find the detailed Throttle body - Injector - Union pipe GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
