Engine displacement
125
2
Model
LX
3
Year
2013
4
Trim
LX 4T 3V ie
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Selectors - Switches - Buttons
Swinging arm
1
2
3
4
5
6
7
8
9
10
11
1
Swinging arm
56204R
Not Available
2
VITE TESTA ESAGONALE(M12x1,75)
597914
$14,12 Unit Price incl. VAT
3
RONDELLA PIANA
178790
$0,51 Unit Price incl. VAT
4
DADO FLANG. M12x1,25-6H CH.19
261319
$3,65 Unit Price incl. VAT
5
VITE A TESTA ESAGONALE
271779
$2,11 Unit Price incl. VAT
6
DADO AUTOFRENANTE M10
002440
$0,34 Unit Price incl. VAT
7
VITE TESTA ESAGON.CON GAMBO PARZ.FILETT.
560045
$1,43 Unit Price incl. VAT
8
RONDELLA PIANA 37 x 10,2 x 3
122781
$3,65 Unit Price incl. VAT
9
RONDELLA PIANA D20 F12,5 S2
709037
$2,25 Unit Price incl. VAT
10
DISTANZIALE
562310
$3,65 Unit Price incl. VAT
11
Spring
564223
$4,82 Unit Price incl. VAT

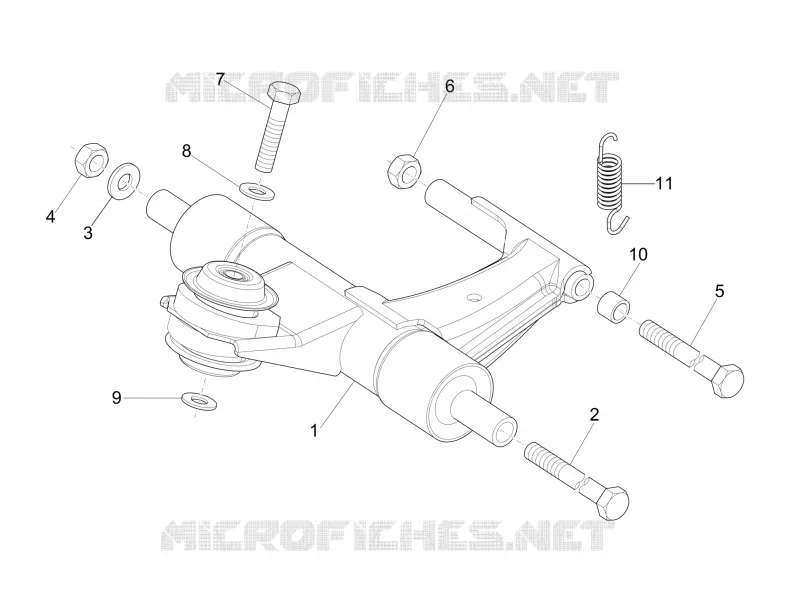

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for LX 4T 3V ie
