1
Engine displacement
125
2
Model
LX
3
Year
2013
4
Trim
LX 4T 3V ie
5
Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Flywheel magneto
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
GEAR BOX COVER WITH I.P.
B0161225
Not Available
2
Radial bearing 25x52x15
83056R
$12,69 Unit Price incl. VAT
3
CUSCINETTO RADIALE 15.42.13
83026R
$4,46 Unit Price incl. VAT
4
ANELLO DI TENUTA 35X47X7
B015623
$5,90 Unit Price incl. VAT
5
ANELLO ELASTICO (52x56,2x2)
006652
$0,76 Unit Price incl. VAT
6
VITE FLANGIATA A TESTA ESAGONALE
B016772
$0,50 Unit Price incl. VAT
7
GUARNIZIONE COPERCHIO RIDUTTORE
B016456
$3,11 Unit Price incl. VAT
8
FASCETTA STRINGITUBO
CM002908
$0,34 Unit Price incl. VAT
8
FASCETTA STRINGITUBO
CM002901
$0,09 Unit Price incl. VAT
9
TUBO SFIATO RIDUTTORE COMPLETO.
B018670
$10,00 Unit Price incl. VAT
10
Driven pulley shaft Z=15
B0169605
Not Available
11
ALBERO DI RINVIO
8319145
$266,37 Unit Price incl. VAT
11
ALBERO DI RINVIO CON P.I.
B017779
$97,76 Unit Price incl. VAT
12
Rear wheel axle
4859095
$155,64 Unit Price incl. VAT
12
ASSE RUOTA POSTERIORE CON P.I.
B017775
$264,51 Unit Price incl. VAT
13
RONDELLA IN LEGA k3
485703
$0,16 Unit Price incl. VAT
14
VITE TCEI (M8x12)
269755
$0,34 Unit Price incl. VAT

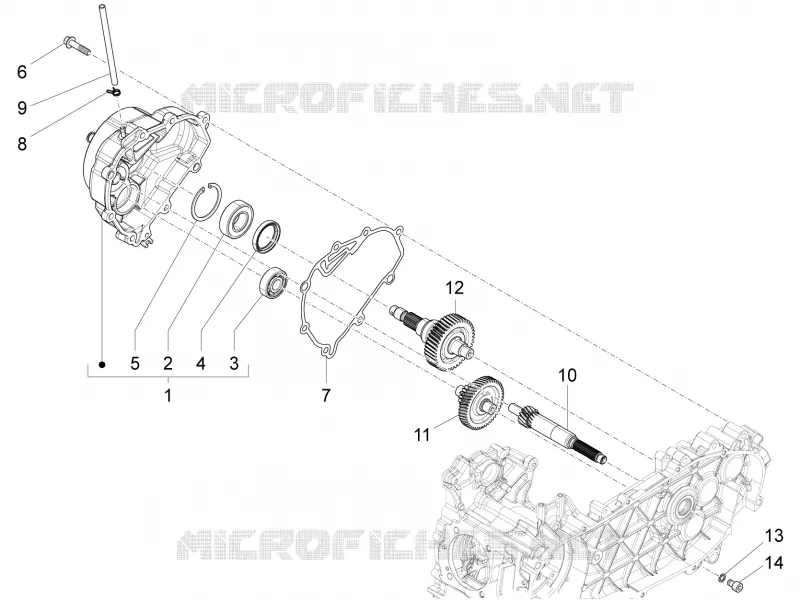

Find the detailed Reduction unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
