1
Engine displacement
125
2
Model
LX
3
Year
2006
4
Trim
LX 4T
5
Parts Catalog
Central cover - Footrests
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Transmissions

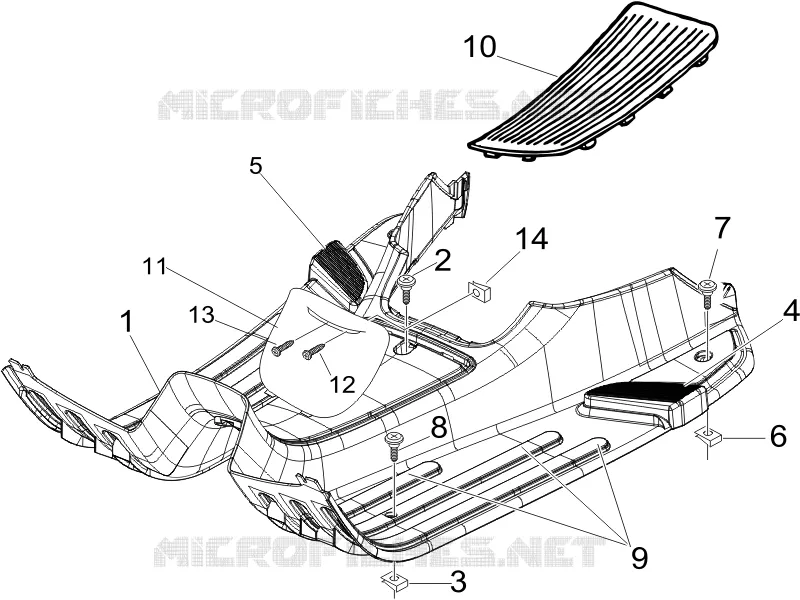

Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
14
1
FOOTBOARD ET4
6221244087
$528,26 Unit Price incl. VAT
1
Painted footrest
62212440R7
$528,26 Unit Price incl. VAT
1
Footrest
62212440F3
Not Available
1
Painted footrest
62212440DE
Not Available
1
FOOTBOARD ET4 125 UNPAINTED
62212440AF
Not Available
1
FOOTBOARD ET4
62212440D9
Not Available
1
Footrest
62212440AA
$528,26 Unit Price incl. VAT
1
Footrest
62212440BM
$528,26 Unit Price incl. VAT
1
Footrest
62212440F2
Not Available
1
Painted footrest
62212440ND
$528,26 Unit Price incl. VAT
2
Self-tap screw
576189
$0,05 Unit Price incl. VAT
3
Plate
CM017406
$3,65 Unit Price incl. VAT
4
LH footrest
622125
$8,16 Unit Price incl. VAT
5
RH footpad
622126
$8,16 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Screw m6x30
271891
$3,65 Unit Price incl. VAT
8
Self tapping screw
297498
$0,08 Unit Price incl. VAT
9
Kit strips, footboard
622139
Not Available
10
Mat
298243
$12,45 Unit Price incl. VAT
11
Spark plug insp. door
622136
Not Available
11
S.PLUG DOOR -UNPAINTED-
62213600AF
Not Available
12
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
14
Plate
CM017408
$0,25 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
