Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Crankcase
by
Rear cover - Splash guard

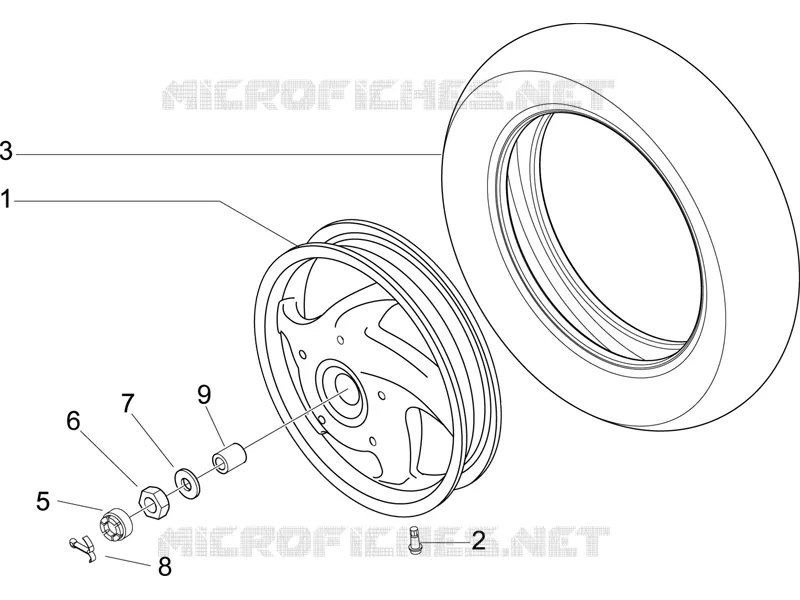

Rear wheel
1
2
3
5
6
7
8
9
1
Rear wheel 3,00x10" (WF)
600067
Not Available
2
Tubeless tyre valve
270991
$1,85 Unit Price incl. VAT
3
(Michelin) Rear tyre 120/70-10"
600560
Not Available
3
Tyre 120/70-10" Pirelli
560661
Not Available
5
Nut hold cap
194423
$0,48 Unit Price incl. VAT
6
Nut M16x13
563728
$1,42 Unit Price incl. VAT
7
Plain washer 34,8x16,2x3
273099
$3,70 Unit Price incl. VAT
8
Split pin
012789
$0,16 Unit Price incl. VAT
9
Spacer
601205
$3,70 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
