1
Engine displacement
125
2
Model
LX
3
Year
2006
4
Trim
LX 4T
5
Parts Catalog

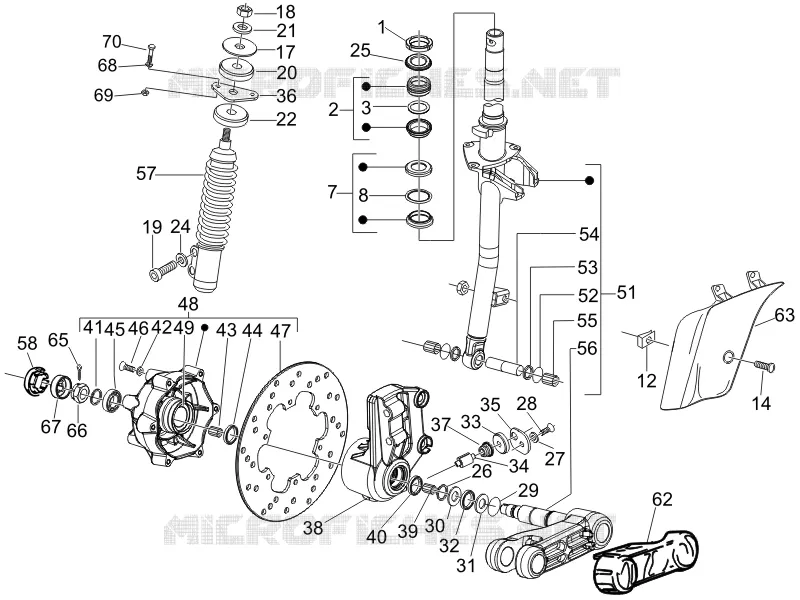

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Head unit - Valve
Fork/steering tube - Steering bearing unit
1
2
3
3
7
8
12
14
17
18
19
20
21
22
25
26
27
28
29
30
31
32
33
34
35
36
38
39
40
41
42
43
44
45
46
47
48
51
52
53
54
55
56
57
58
62
63
65
66
67
68
69
70
1
Steering tube ring nut
011109
Not Available
2
Upper thrust ring
CM061303
$65,02 Unit Price incl. VAT
3
Missing description
000000
Not Available
7
Lower steering bearing
CM061304
Not Available
8
Missing description
000000
Not Available
11
Ring gear counts Km socket
267818
$33,03 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
Front wheel hub
560284
Not Available
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
17
Washer
012535
$0,08 Unit Price incl. VAT
18
Nut
021210
$0,16 Unit Price incl. VAT
19
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
20
Pad
174085
$1,18 Unit Price incl. VAT
21
Washer
174088
$0,84 Unit Price incl. VAT
22
Pad
174874
$2,36 Unit Price incl. VAT
25
Spring washer
709047
$0,08 Unit Price incl. VAT
25
Washer of the steering
003751
$3,65 Unit Price incl. VAT
26
Circlip
006422
$0,16 Unit Price incl. VAT
27
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
28
screw M5x16
031058
$2,95 Unit Price incl. VAT
29
O-ring
177408
$0,08 Unit Price incl. VAT
30
Washer
177414
$0,75 Unit Price incl. VAT
31
Washer
177445
$0,34 Unit Price incl. VAT
32
Ring
177521
$0,66 Unit Price incl. VAT
33
Pad
266841
$5,53 Unit Price incl. VAT
34
Pinion
267819
$7,69 Unit Price incl. VAT
35
Plate
269118
$4,82 Unit Price incl. VAT
36
Bracket
273693
$7,23 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
Not available
560286
Not Available
39
Drawn cap
177436
$9,18 Unit Price incl. VAT
40
Ring
177494
$1,85 Unit Price incl. VAT
41
Snap ring
006635
$0,25 Unit Price incl. VAT
42
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
43
Roller cage
177442
$4,04 Unit Price incl. VAT
44
Gasket ring
177443
$1,77 Unit Price incl. VAT
45
Bearing
177610
$8,41 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
47
Brake disc
56395R
$21,87 Unit Price incl. VAT
47
Brake disc
563246
Not Available
48
Front wheel hub
560284
Not Available
51
Steering column tube
6011825
Not Available
52
Gasket
006731
$0,34 Unit Price incl. VAT
53
Gasket ring
119219
$0,67 Unit Price incl. VAT
54
Piston pin
177451
$3,03 Unit Price incl. VAT
55
Roller cage
198513
$5,97 Unit Price incl. VAT
56
Suspension arm
56140R
Not Available
57
Front shock absorber
56266R
Not Available
58
Cover
092517
Not Available
62
Front suspension arm cover
561433
Not Available
63
Cover for front suspension (GR - Raw)
60041640AF
$90,69 Unit Price incl. VAT
63
SHOCK ABS. COVER ET/RST
6004164087
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041640DE
Not Available
63
Front suspension cover
60041600DE
Not Available
63
COVER FOR FRONT SUSPENS.
60041600F3
Not Available
63
COVER FOR FRONT SUSPENS.
60041640EI
Not Available
63
COVER FOR FRONT SUSPENS.
60041600EI
Not Available
63
COVER FOR FRONT SUSPENS.
60041600AF
Not Available
63
Front suspension cover
60041640R7
$90,69 Unit Price incl. VAT
63
SHOCK ABS. COVER ET/RST
60041640D9
Not Available
63
Tyre
60041640F3
$90,69 Unit Price incl. VAT
63
Tyre
60041640AA
$90,69 Unit Price incl. VAT
63
Tyre
60041640F2
$90,69 Unit Price incl. VAT
63
Tyre
60041640BM
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041640ND
$90,69 Unit Price incl. VAT
65
Split pin
012789
$0,16 Unit Price incl. VAT
66
Nut
021114
$0,51 Unit Price incl. VAT
67
Cap
177609
$2,19 Unit Price incl. VAT
68
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
69
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
70
screw
031120
$0,42 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
