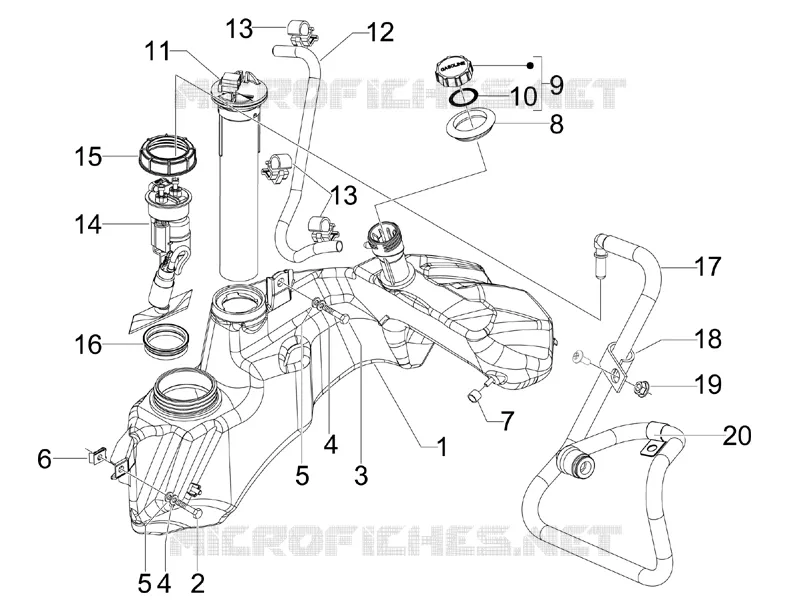

Fuel tank
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Fuel tank
656010
Not Available
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
screw M6x35
414838
$0,67 Unit Price incl. VAT
4
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
5
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Spacer
623162
$0,50 Unit Price incl. VAT
8
Fuel tank gasket
620737
$4,82 Unit Price incl. VAT
9
Plug
656022
$8,74 Unit Price incl. VAT
10
Tank cover gasket
656021
$8,66 Unit Price incl. VAT
11
Indicator fuel level
CM025707
$86,99 Unit Price incl. VAT
12
Tank breather pipe Ø5x10 L.1060
CM001432
$11,50 Unit Price incl. VAT
13
Spring
CM013201
$0,40 Unit Price incl. VAT
14
Complete fuel pump assembly
643034
$456,49 Unit Price incl. VAT
15
Ring nut
576546
$4,71 Unit Price incl. VAT
16
Gasket
656003
$15,89 Unit Price incl. VAT
17
Fuel delivery pipe complete with joints
654222
$66,71 Unit Price incl. VAT
18
Hose clamp
573918
$1,09 Unit Price incl. VAT
19
Nut
969224
$0,42 Unit Price incl. VAT
20
Hose clamp
675510
$1,80 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
