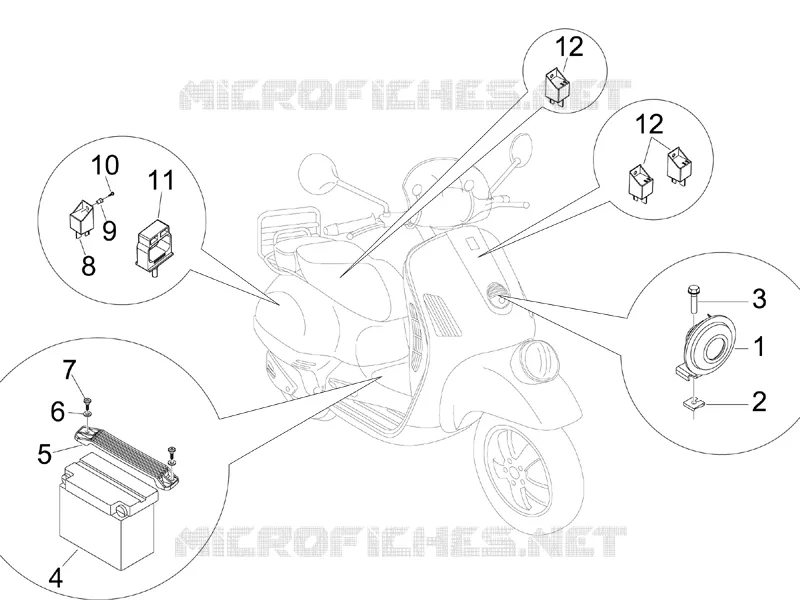

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
12
1
Horn
58093R
$14,39 Unit Price incl. VAT
2
Spring plate M6
254485
$0,34 Unit Price incl. VAT
3
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
4
Battery (Yuasa) 12V-10Ah
583158
$278,17 Unit Price incl. VAT
5
Battery bracket
621830
Not Available
6
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
7
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
8
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
9
Expansion plug
157716
$0,08 Unit Price incl. VAT
10
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
11
Flexible support
291017
$4,88 Unit Price incl. VAT
12
Starter relay 12V-80A (Italmec)
639679
Not Available
12
Relay with resistance 12V-30A
641933
$19,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
