Engine displacement
350
2
Model
BV
3
Year
2015
4
Trim
BV 4T 4V ie E3 ABS
5
Parts Catalog
Frame/bodywork
6
Parts Diagram
Parts Catalog
Front shield
by
Throttle body - Injector - Union pipe
Frame/bodywork
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
1
Frame with u.p.
6574545
Not Available
2
Lock support
575357
$24,90 Unit Price incl. VAT
3
Pin l.h.
6574955
Not Available
4
screw M6x16
031088
$0,17 Unit Price incl. VAT
5
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
6
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
7
Pin r.h.
6574965
$31,21 Unit Price incl. VAT
8
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
9
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
10
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
11
Pipes connection cross pin
673000
$21,37 Unit Price incl. VAT
12
Small carrier connector front pipe
672435
Not Available
13
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
14
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
15
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
16
Rear frame
657193
Not Available
17
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
18
Washer
078307
$0,17 Unit Price incl. VAT

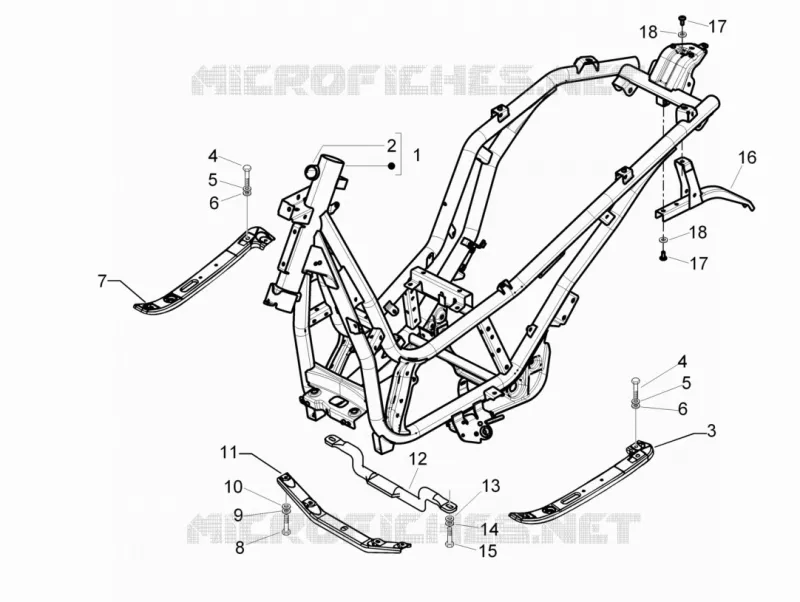

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
