1
Engine displacement
350
2
Model
BV
3
Year
2015
4
Trim
BV 4T 4V ie E3 ABS
5
Parts Catalog

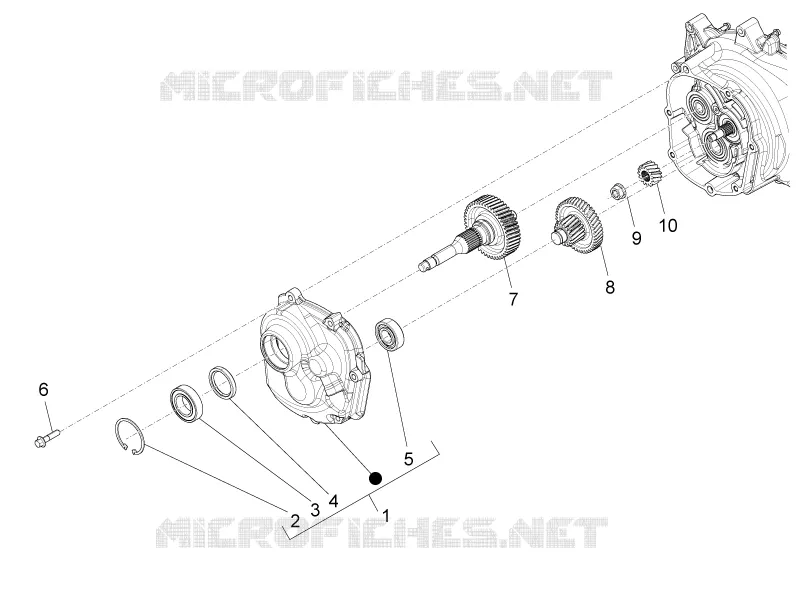

Reduction unit
6
Parts Diagram
Parts Catalog
Cooler pump
by
Rear wheel
Reduction unit
1
2
3
4
5
6
7
8
9
10
1
Complete reducer cover
8789015
$339,68 Unit Price incl. VAT
2
Circlip
829206
$0,67 Unit Price incl. VAT
3
Radial bearing 30x55x13
83034R
Not Available
4
Gasket ring 38x50x7
83082R
$12,36 Unit Price incl. VAT
5
Radial bearing 20x47x14
485913
Not Available
6
Screw w/ flange M8x35
B016772
$0,50 Unit Price incl. VAT
7
Rear wheel axle with U.P.
B0151125
Not Available
8
Countershaft with U.P.
B0157415
Not Available
9
Flanged nut
B015804
$5,20 Unit Price incl. VAT
10
Driven pulley gear
8778305
Not Available

Find the detailed Reduction unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
