1
Engine displacement
350
2
Model
BV
3
Year
2015
4
Trim
BV 4T 4V ie E3 ABS
5
Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Rear cover - Splash guard
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
14
15
16
17
18
1
Front mudguard
66719700NO
Not Available
1
Front mudguard
66719700H4
Not Available
1
Front mudguard
66719700BZ
$418,21 Unit Price incl. VAT
1
Front mudguard
667197
$300,02 Unit Price incl. VAT
2
Rear mudguard
672619
$31,21 Unit Price incl. VAT
3
Wheel compartment
672954000C
$32,28 Unit Price incl. VAT
4
LH sleeve
66550400H3
$82,69 Unit Price incl. VAT
5
RH sleeve
66550500H3
$82,69 Unit Price incl. VAT
6
Sliders support bracket
598642
$6,30 Unit Price incl. VAT
7
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
8
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
9
Support clamp
667085
$49,04 Unit Price incl. VAT
10
Spring plate M6
254485
$0,34 Unit Price incl. VAT
11
Screw m6x12
031086
$0,08 Unit Price incl. VAT
12
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
13
Self tapping screw
297498
$0,08 Unit Price incl. VAT
14
Self-tapping screw
018623
Not Available
15
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
16
Spring plate
CM017410
$0,34 Unit Price incl. VAT
17
Rear mudguard lateral cover
673194
$33,05 Unit Price incl. VAT
18
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT

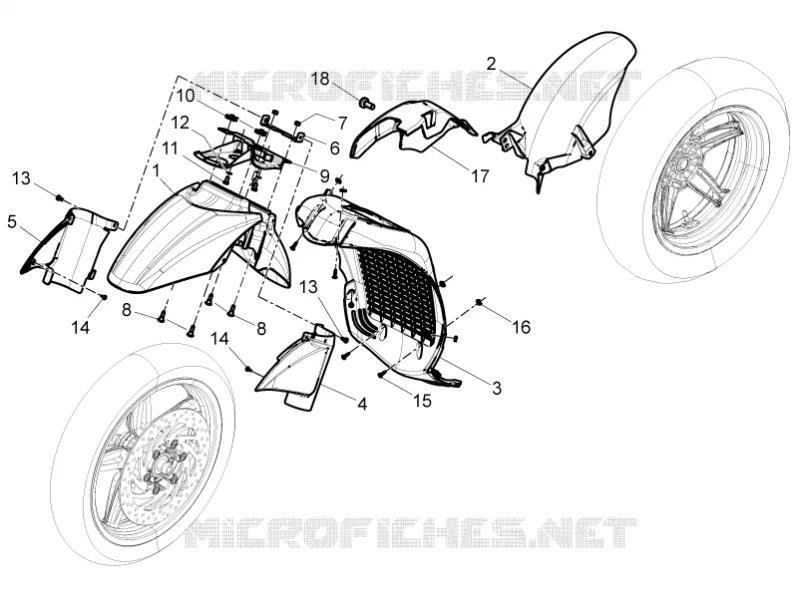

Find the detailed Wheel huosing - Mudguard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
